Audi A3 2016 MQB New Key Programming by XTOOL X100 PAD2+KEYDIY

Here is a instruction show the steps on how to add a new smart key for Audi A3 2016 MQB platform by XTOOL X100 PAD and KEYDIY programmer.More key programming for Audi,please refer to:Audi key programming



What Requires in This Example:

A working key

A new blank key

XTOOL X100 PAD2 with KC100

KEYDIY Programmer



Procedures:

Run KEYDIY application on your phone,then build connection to KEYDIY programmer by bluetooth.

Then working original key is 48 chip

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-1

Put new key in the slot,select “Remote function”–>”Vehicle Remote”–>”Audi”–>”A3”–>”Audi MQB FOLD(No KeylessGo)”

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-2

Then press “Generate”,and select “Wire generation”

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-3 Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-4

Wait generate successfully

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-5

Now connect XTOOL X100 PAD2 to Audi A3 by obd port

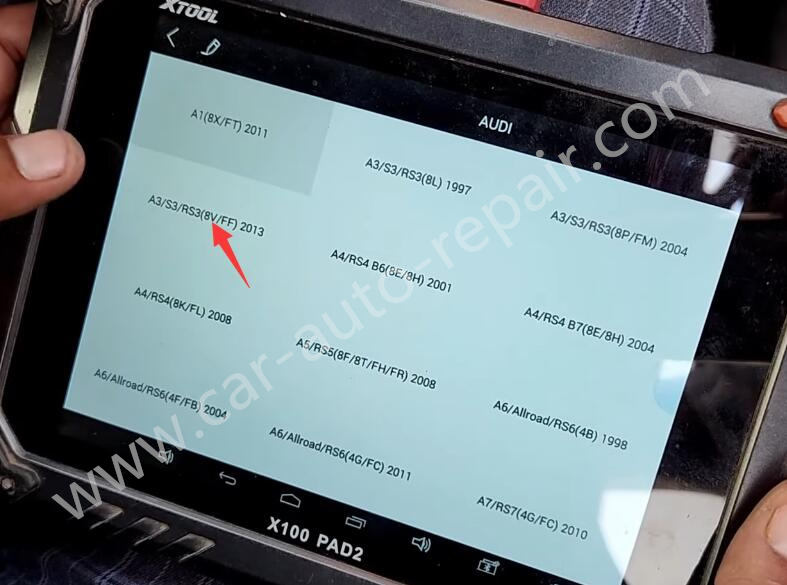

Access menu to select “Audi”–>”Select by type”–>”Audi”–>”A3/S3/RS3(8V/FF)2013”–>”2013/6”–>”MQB Platform”

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-6 Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-7





Select “Read immokey data”

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-8

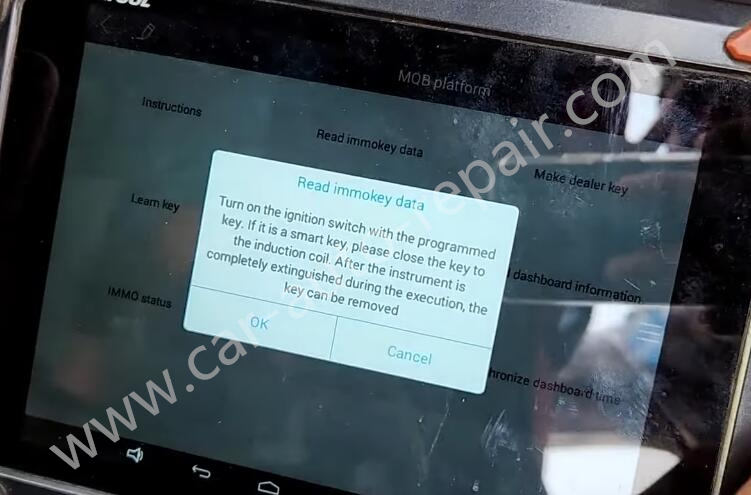

Turn on the ignition switch with the programmed key.If it is a smart key,please close the key to the induction coil.After the instrument is completely extinguished during the execution,the key can be removed.

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-9

Press “OK”,and wait read immo key data finish.

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-10



Press “Make dealer key”

Put a programmed key (working key) into the KC100

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-11

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-12



Press “Ok” to wait getting key data finish

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-13

If it prompt “saving data failed”,please just press “OK”

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-14

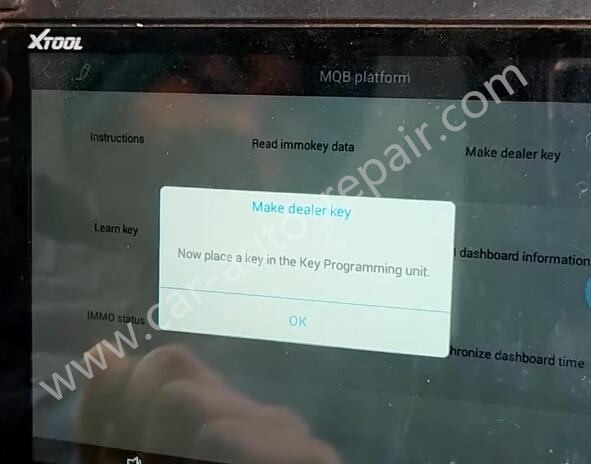

Now place a key (new key) in the key programming unit (KC100)

Then press “OK” to continue

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-15

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-16



Make dealer key success

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-17



Back to menu select “Learn key”,if will ask you use working key to turn on ignition

Press “OK” to continue

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-18

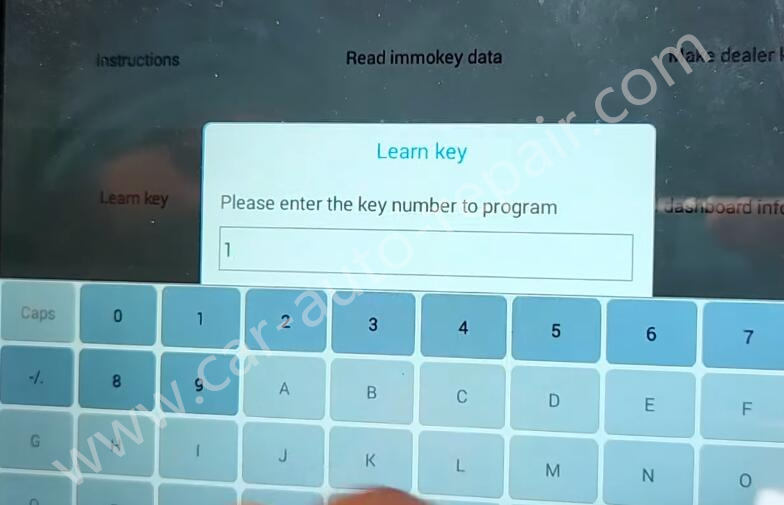

Please enter the key number to program

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-19

Press “No”

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-20

Please change the another key after learning the key successfully

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-21 Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-22

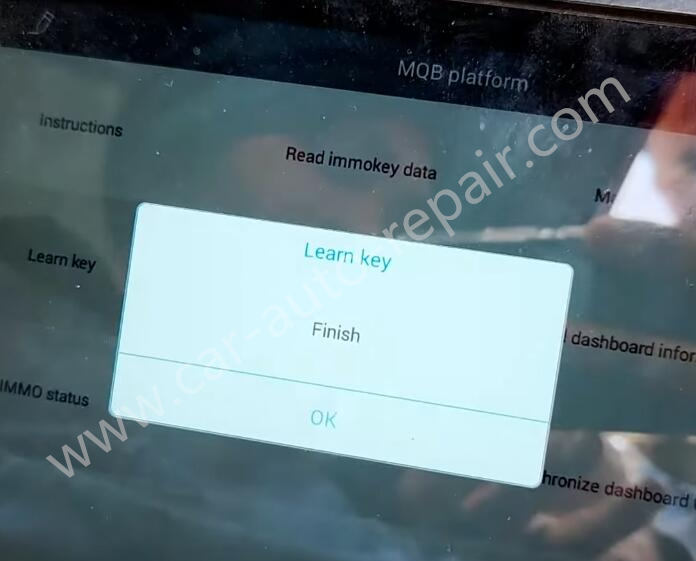

Learn key finish

Audi-A3-2016-MQB-New-Key-Programming-by-XTOOL-X100-PAD2KEYDIY-23

Now test key.
