Kubota L3301 L3901 L4701 Tractor Hydraulic Cylinder Assembly Guide

Here is the instruction show you guide on how to assemble Kubota L3301 L3901 L4701 tractor hydraulic cylinder.

Related Contents:

Hydraulic Cylinder Assembly

1 Loosen and remove the hydraulic cylinder assembly mounting screws and nuts.

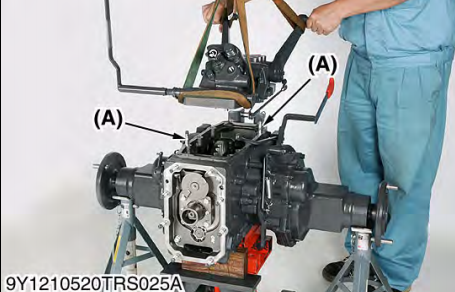

2 Support the hydraulic cylinder assembly with nylon lift strap and hoist, and then remove it.

(When reassembling)

Apply liquid gasket (Three Bond 1206C or equivalent) to joint face of the hydraulic cylinder assembly and transmission case after eliminate the water, oil and stuck liquid gasket.
When replacing the hydraulic cylinder assembly mounting stud bolts, apply liquid lock (Three Bond 1324 or equivalent) to (A) portion of the stud bolt.

NOTE

Reassemble the hydraulic cylinder assembly to the tractor, be sure to adjust the position control rod. (See page 8-S15.)

PTO Clutch and Pinion Bearing Holder

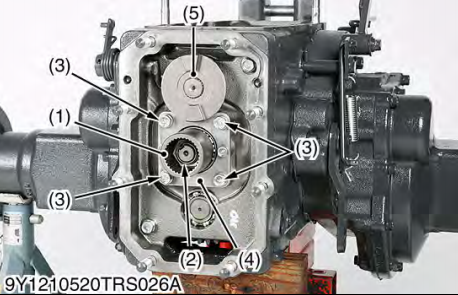

1 Remove the coupling (1) and the PTO clutch cam (5).

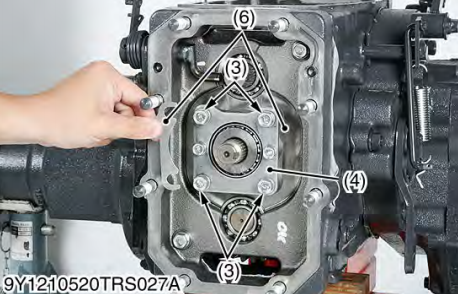

2 Remove the screws (3) and pinion bearing holder assembly (4).

3 Remove the lock nut (2).

(When reassembling)

Make sure of the number of shims in the pinion bearing holder.
Replace the lock nut (2) with a new one, and stake the lock nut firmly after installing the parts on the shaft.

Gear and Shaft Assembly

1 Remove the spacer mounting screws.

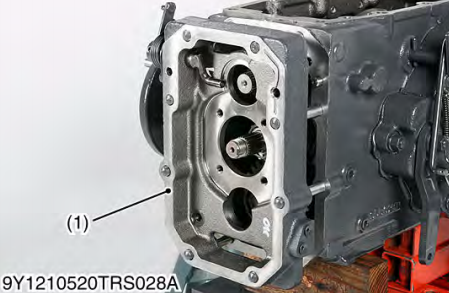

2 Separate the spacer (1) from the transmission case.

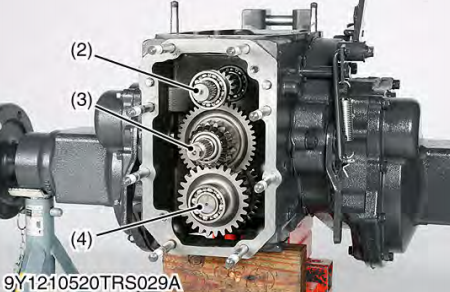

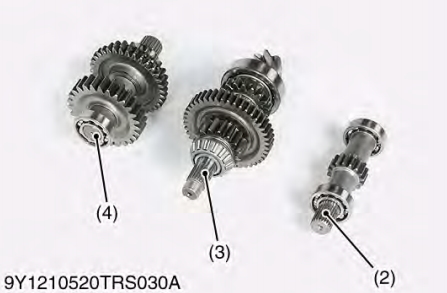

3 Remove the 16T gear shaft assembly (2).

4 remove the pinion shaft assembly (3) and PTO drive shaft assembly (4).

(When reassembling)

Apply liquid gasket (Three Bond 1206C or equivalent) to joint faces of spacer and transmission case.

Rear Axle Case

1 Loosen and remove the rear axle case mounting screws and nuts.

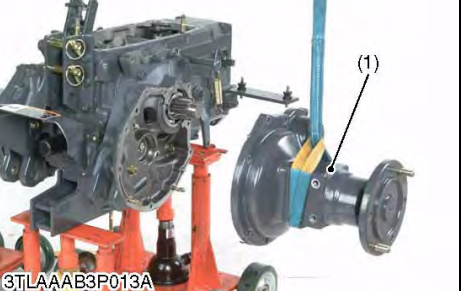

2 Support the rear axle case (1) with the nylon lift strap and hoist.

3 Separate the rear axle case from brake case.

4 Follow the same procedure as above for the other side.

(When reassembling)

Apply liquid gasket (Three Bond 1206C or equivalent) to joint face of the rear axle case and brake case, after eliminating the water, oil and stuck liquid gasket.

Brake Case

1 Loosen the remove the brake case mounting screws and nut.

2 Separate the brake case, tapping the brake case lever lightly.

(When reassembling)

Apply grease to the brake ball seats. (Do not grease excessively.)
Apply liquid gasket (Three Bond 1206C or equivalent) to joint face of the brake case and transmission case, after eliminating the water, oil and stuck liquid gasket.
Before installing the brake case to the transmission case, install the cam plate to the transmission case.

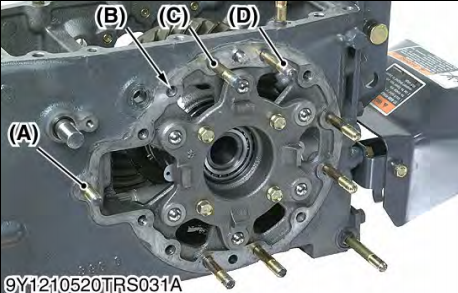

Apply liquid lock (Three Bond 1324 or equivalent) to (A), (B), (C), (D)portions of the stud bolts, R.H. and L.H..

Differential Lock

1 Remove the clevis pin (1).

2 Draw out the differential lock fork shaft (2).

3 Remove the shift fork (3).
