Here is the instruction show the guide on how to remove reverser drive for CLAAS Lexion 480 combine agricultural machine.
Related Content:
CLAAS CDS 7.5 Diagnostic Software 2021 2020 Free Download
CLAAS USB Interface Diagnostic Adapter Package
Claas WebTIC Offline Repair & Service 2024 2015 Free Download
Removing the reverser drive
Raise the feed rake conveyor and secure by engaging the cutterbar cylinder safety lock.

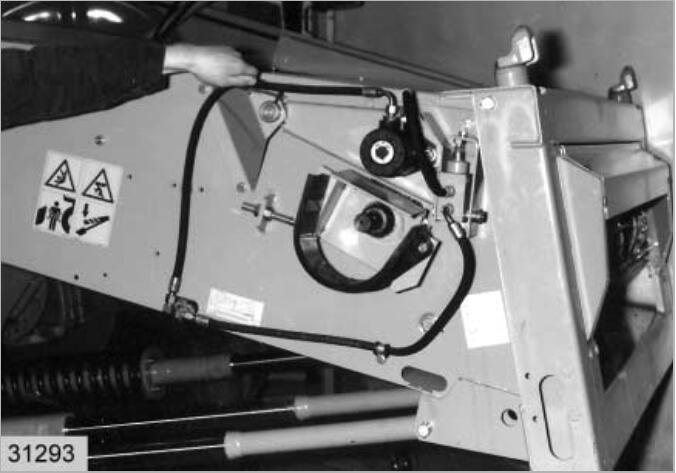

Loosen and remove the set collar from the bearing plate.

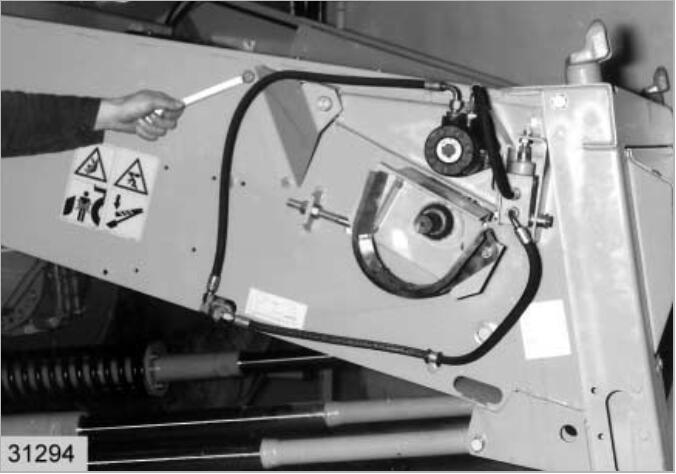

Loosen the M 10 x 20 hex. bolt so that the bearing plate may be removed.

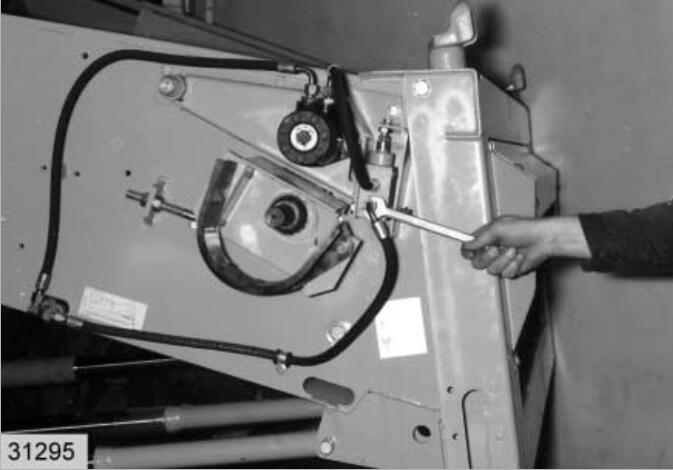

Remove the hose end that goes off to the tank from the hydraulic cylinder and plug it with a plastic cap.

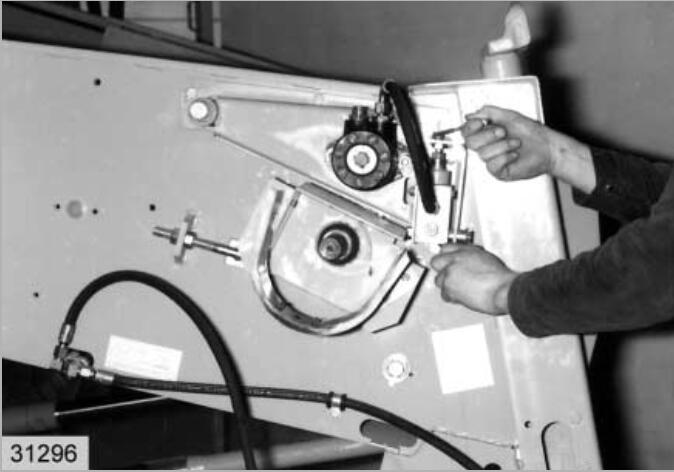

Loosen the M 8 x 180 hex. bolt.

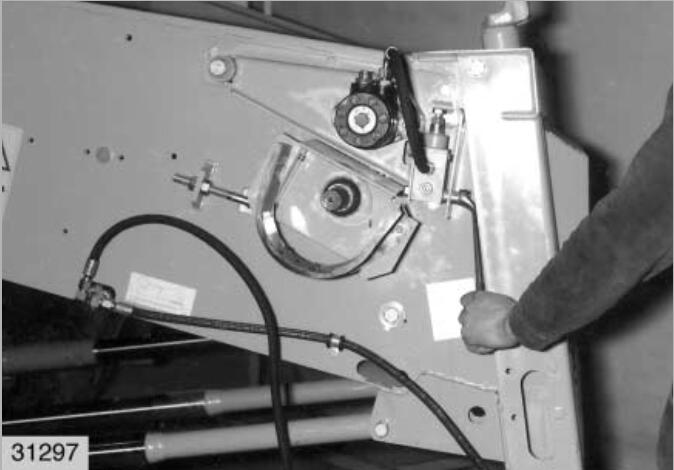

Remove the spring clamp.
Remove the M 8 x 65, the M 12 x 25 and the M 12 x 45 hex. bolts with eccentric bolt from the hydraulic cylinder and remove the cylinder.
Remove the supporting arm with the hydraulic motor and the drive gear.
Unscrew the M 8 x 25 hex. bolt from the face end of the hydraulic motor.

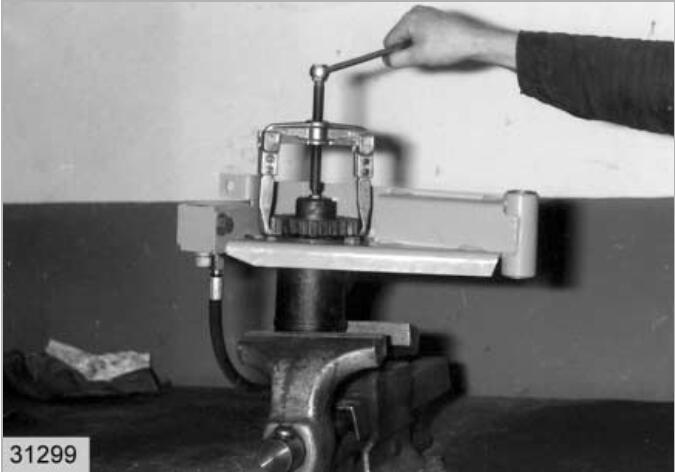

Using a two-legged puller and a M 8 hex. bolt with centraliser, pull off the gear.

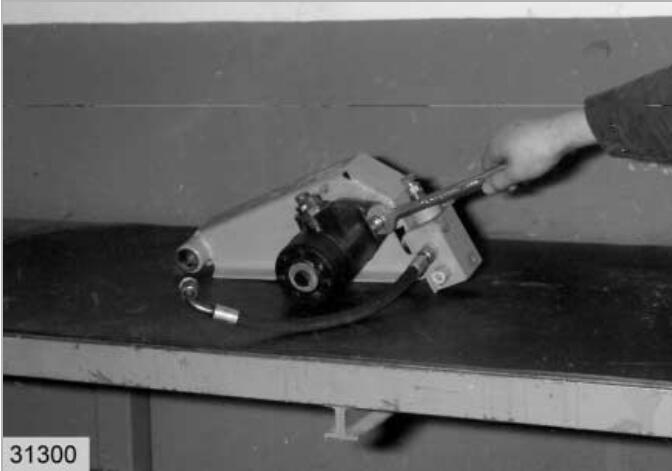

Loosen the M 12 x 35 hex. bolts and remove the hydraulic motor from the supporting arm.
