Toyota Lexus ES250 Tire Pressure Sensor Program by Launch X431

When you replace tire pressure sensors,you need to program it for your car.So here i want to show this instruction on how to use Launch X431 to program tire pressure sensor for Lexus ES250 2014.And here is a collection for TMPS projects:Tire Pressure Sensor Trouble Repair.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-1

What You Need?

Launch X431 V Pro



Operation Procedure:

1.Switch on the ignition.

2.Select the Toyota Version V48.50.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-2

3.Select “16PIN Diagnostic Socket (Euro&RoW)”.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-3

4.Select “Automatic Search”.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-4

5.Select corresponding car model ES250.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-5

6.Select “Up to 08/2014”

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-6

7.Displayed car model information is as below.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-7

8.Select system selection.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-8

9.Select chassis.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-9

10.Select ” ABS/VSC/TRC “.

Launch-X431-Airbag-Module-Programming-for-Ford-Focus-2013-10

11.Select “Read Data Stream”.

Launch-X431-Airbag-Module-Programming-for-Ford-Focus-2013-11

12.Select manual selection.

Launch-X431-Airbag-Module-Programming-for-Ford-Focus-2013-12

13.Select registered ID1 Code-ID5 Code (5 data streams) to read.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-13

14.Write down the code value you read for later entry.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-14 Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-15



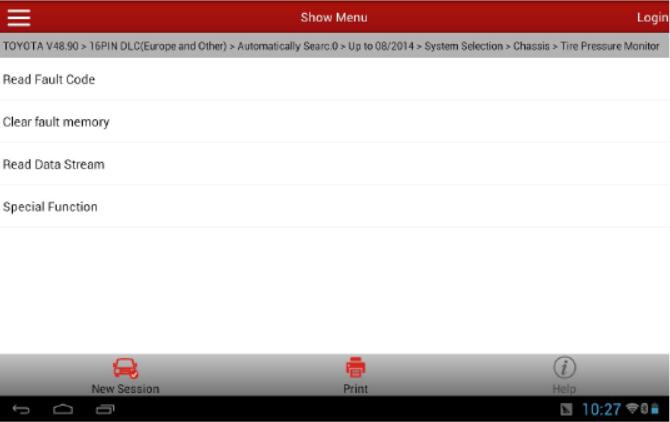

15.Select special function.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-16

16.Select automatically scan the special function.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-17

17.Select identification registration.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-18

18.Select master tires and follow the prompts. Note, this vehicle requires to input 5 tire pressuresensor IDs.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-19

19.Select Main Set

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-20 Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-21 Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-22 Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-23



20.Input the ID1-ID5 codes according to the replacement of the tire pressure sensors. As ID1 is not replaced, input the original ID1 code “1234567”.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-24

21.Input the ID2 code. As the ID2 tire pressure sensor is replaced, input the new code “1234567”.For the new code and Picture 11 for the operation interface.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-25 Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-26



22.Input the original ID3 code “07654321”.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-27

23.Input the original ID4 code “9fedcba”.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-28

24.Input the original ID5 code “1234abc”.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-29

25.After successful entry, it prompts “ID login completed”.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-30

26.Read the data streams of ID1-ID5 again to confirm each ID code has been successfully written.

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-31

Lexus-ES250-Tire-Pressure-Sensor-Programming-by-Launch-X431-32

27.Drive the vehicle, everything is normal. Problem has been solved.
