Toyota Alphard Blind Spot Monitor Malfunction Repair by Launch X431

This guide show you how to use Launch X431 ADAS Pro Plus to repair Toyota “Blind Spot Monitor malfunction”,it always prompt you with DTC:C1ABC and C1ABB trouble code.More test report about Launch X431 please check:Launch X431 Test Report

Toyota-Alphard-Blind-Spot-Monitor-Malfunction-Repair-by-Launch-X431-1



Preparations:

Launch X431 PAD V



Procedures:

Connect Launch X431 PAD V to Toyota Alphard,then select “Toyoata”à”16PIN DLC (Japan)”

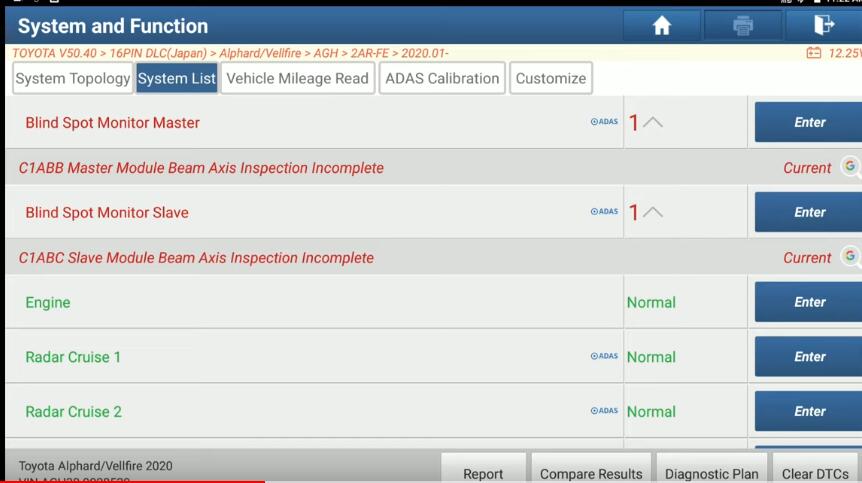

After vehicle identification,it will scan system and show you trouble code information

C1ABB:Master Module Beam Axis Inspection Incomplete

C1ABC:Slave Module Beam Axis Inspection Incomplete

Toyota-Alphard-Blind-Spot-Monitor-Malfunction-Repair-by-Launch-X431-2

Select “BSM Slave Beam Axis Display”

This function is used to adjust Blind Spot Monitor Slave Beam Axis after moving to adjustment mode.

Toyota-Alphard-Blind-Spot-Monitor-Malfunction-Repair-by-Launch-X431-3

Please set up the reflector according to the position in the Repair manual.

Confirm the following conditions.

–IG is ON

–BSM main SW is ON

Press OK to move to adjustment mode.

Toyota-Alphard-Blind-Spot-Monitor-Malfunction-Repair-by-Launch-X431-4

Park the vehicle on a level surface,make sure that there are no metal objects around the vehicle or on the ground.

Do not place any objects other than the reflector (such as a large metallic object) in the inspection area or allow people to enter.

Toyota-Alphard-Blind-Spot-Monitor-Malfunction-Repair-by-Launch-X431-5

Calibration Setup:

1.Place the ADAS calibration tool centered in front of the radar sensor.

2.Adjust the reflector (LAC05-03) so that the center of reflector (LAC05-03) is the same height as the millimeter wave radar sensor assembly.

3.Make sure to align the center of reflector (LAC05-03) with the millimeter wave radar sensor

4.The Distance between the radar reflector

Toyota-Alphard-Blind-Spot-Monitor-Malfunction-Repair-by-Launch-X431-6

Press “Calibration”

Toyota-Alphard-Blind-Spot-Monitor-Malfunction-Repair-by-Launch-X431-7

Now BSM Slave Beam Axis Adjustment is complete

Toyota-Alphard-Blind-Spot-Monitor-Malfunction-Repair-by-Launch-X431-8

And pls go to perform road test

Toyota-Alphard-Blind-Spot-Monitor-Malfunction-Repair-by-Launch-X431-9

More topic about Toyota,please refer to:Toyota Trouble
