Remove & Disassemble Instrument Cluster for Dodge Caliber 2006-2009

This mini post show you guide on how to remove and disassemble instrument cluster for Dodge Caliber 2006-2009.This guide and many other cases please refer to:DashBook Pro v6.4 Dashboard Removal Tool Book Download

Remove-Disassemble-Instrument-Cluster-for-Dodge-Caliber-1



Removing the instrument cluster

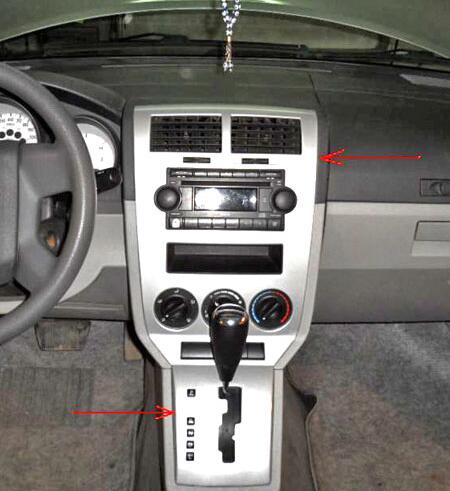

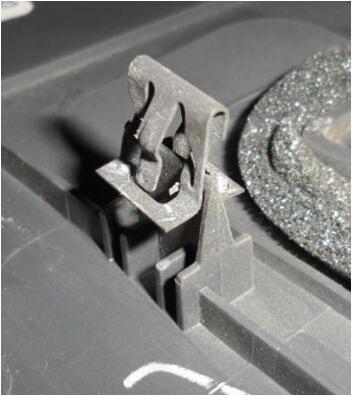

Remove center console holds snap of iron

Remove-Disassemble-Instrument-Cluster-for-Dodge-Caliber-2 Remove-Disassemble-Instrument-Cluster-for-Dodge-Caliber-3

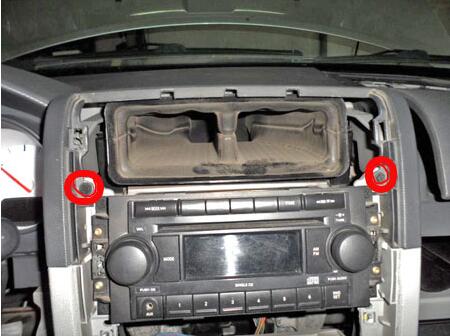

Unscrew the two screws

Remove-Disassemble-Instrument-Cluster-for-Dodge-Caliber-4

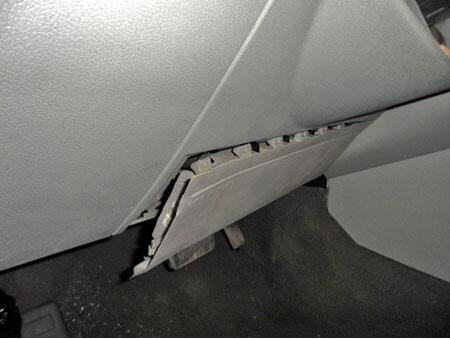

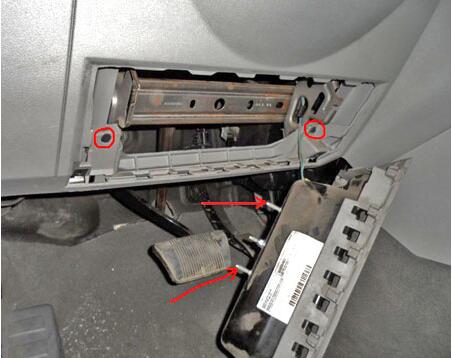

Next,disassemble the lower trim on the left side (in the legs of the driver),it is necessary to unscrew the safety cushion for the knees have to Dodge,and the inside panel of 10 small key unscrew the two nuts.

Remove-Disassemble-Instrument-Cluster-for-Dodge-Caliber-5

Unscrew the 2 screws

Remove-Disassemble-Instrument-Cluster-for-Dodge-Caliber-6

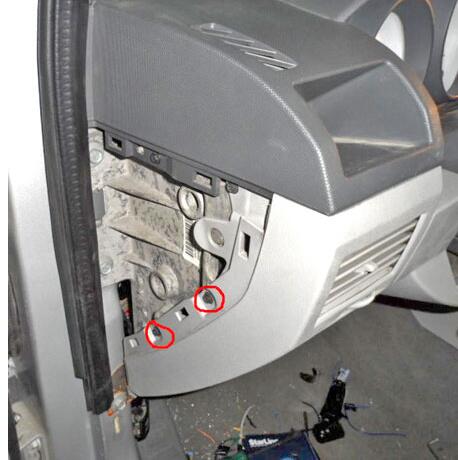

Remove side plates on the right and left sides,unscrew the two screws on the left and marked the third from the top,which holds the top panel.

Remove-Disassemble-Instrument-Cluster-for-Dodge-Caliber-7

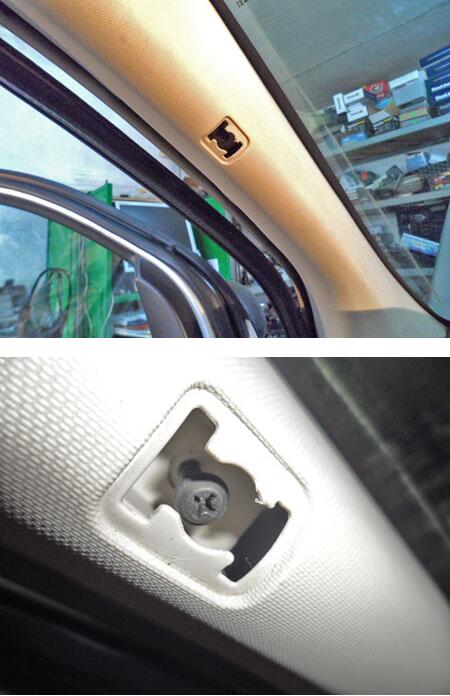

Remove screw below

Remove-Disassemble-Instrument-Cluster-for-Dodge-Caliber-8

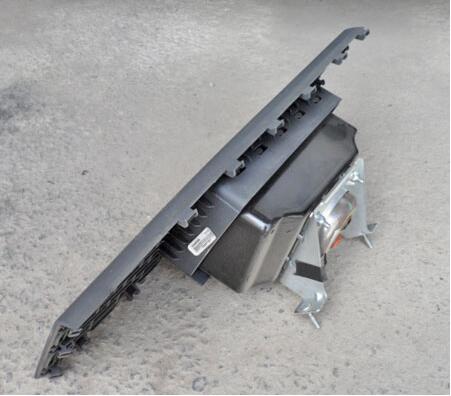

Next you need to remove the passenger pillow,the same key to Dodge by himself plastic

Remove-Disassemble-Instrument-Cluster-for-Dodge-Caliber-9

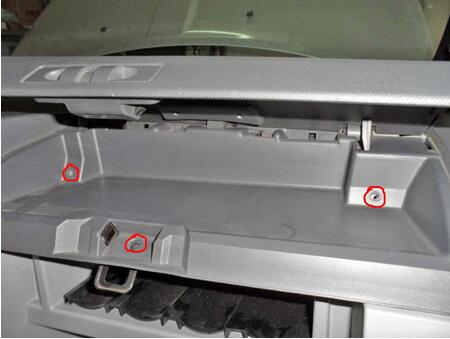

Unscrew the 3 screws in the upper glove box

Remove-Disassemble-Instrument-Cluster-for-Dodge-Caliber-10

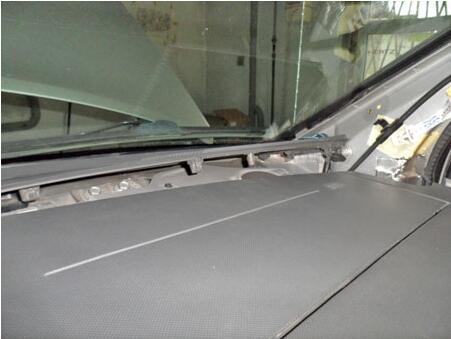

Poddevaem and carefully remove the trim nlay is near the windshield

Remove-Disassemble-Instrument-Cluster-for-Dodge-Caliber-11

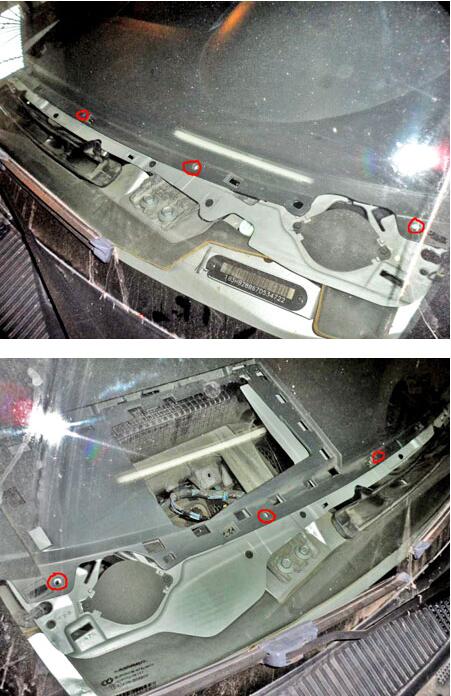

Unscrew the remaining screws

Remove-Disassemble-Instrument-Cluster-for-Dodge-Caliber-12

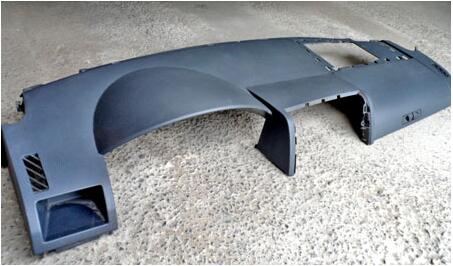

Remove the upper trim

Remove-Disassemble-Instrument-Cluster-for-Dodge-Caliber-13

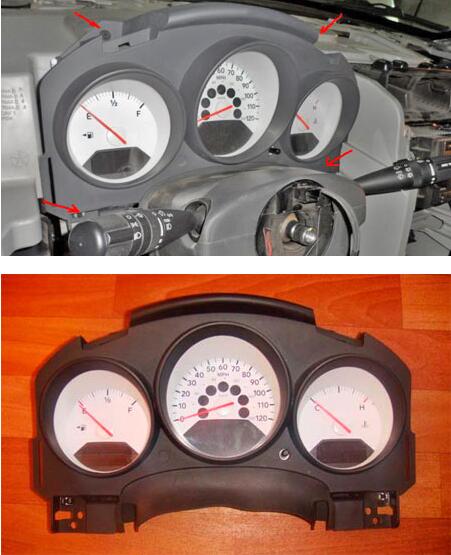

Remove the 4 screws and remove the instrument cluster

Remove-Disassemble-Instrument-Cluster-for-Dodge-Caliber-14

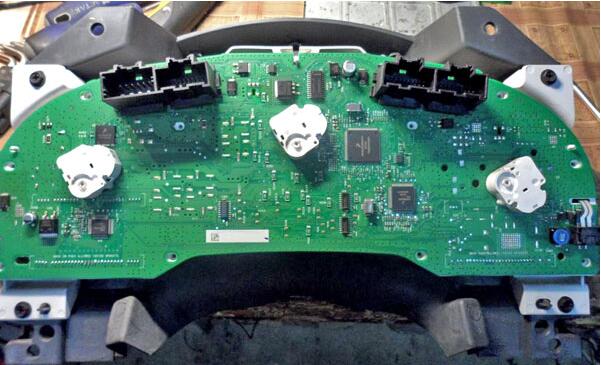

Access MC9S12H256,remove the back cover

Remove-Disassemble-Instrument-Cluster-for-Dodge-Caliber-15
