Land Rover Discovery Door Spring Replacement

This article show the guide on how to replace the broken spring on a rear passenger door for Land Rover Discovery.



Procedures:

Step1:Remove the grab handle which is secured by two 10mm hex-head bolts.

Land Rover Discovery Door Spring Replacement (1)

Step2:Remove the latch lever surround by holding the lever open and then unscrewing the PZ screw underneath, then slide towards the front of the car and away.

Land Rover Discovery Door Spring Replacement (2)

Step3:Prise away the door card, starting at the bottom and working around the card until it is free (you’ll probably snap some of the studs off but don’t worry about it too much – mine only has 4 holding it on!)

Land Rover Discovery Door Spring Replacement (3)

Step4:Lift the door card up and over the lock pin then disconnect the window switch. At this stage (depending on whos been in the door before you) you may have a plastic membrane stuck to the door which needs removing – or just cutting off if you’re a rough get like me!

Land Rover Discovery Door Spring Replacement-15

Step5:Now you can see the linkages to the latch but they’re not that easily accessible, so remove the two large PZ screws on the rear edge of the door and the 10mm hex head bolt on the face. (don’t loose the spacer from the bolt, inside door skin)

Land Rover Discovery Door Spring Replacement (4)

Step6:Now the latch mechanism is free you can get to the linkages a bit easier, start by removing the top front linkage, simply lift the clip over the rod then pull the clip off and keep it safe and push the rod back through the hole.

Land Rover Discovery Door Spring Replacement (5)

Step7:Unscrew the latch lever and unhook the linkage from it

Land Rover Discovery Door Spring Replacement (6)

Step8:Pemove the fiddlely little linkage to the outer handle, this uses the same attachement as the first linkage. be careful not to spin the rod as it has a thread on the latch end for adjustment…

Land Rover Discovery Door Spring Replacement (7)

Step9:Pull the latch out of the door, here’s my broken spring and the two holes where it should be fitted are marked

Land Rover Discovery Door Spring Replacement (8)

Step10:Remove the damaged spring, then fit the new one into the round hole first

Land Rover Discovery Door Spring Replacement (9)

Step11:Then using a small screwdriver prise the free end of the spring into the triangular hole – the spring will sit with the round part facing downwards inbetween the two plates and will create a positive click between open and closed positions. Test before reinstallation

Land Rover Discovery Door Spring Replacement (10)

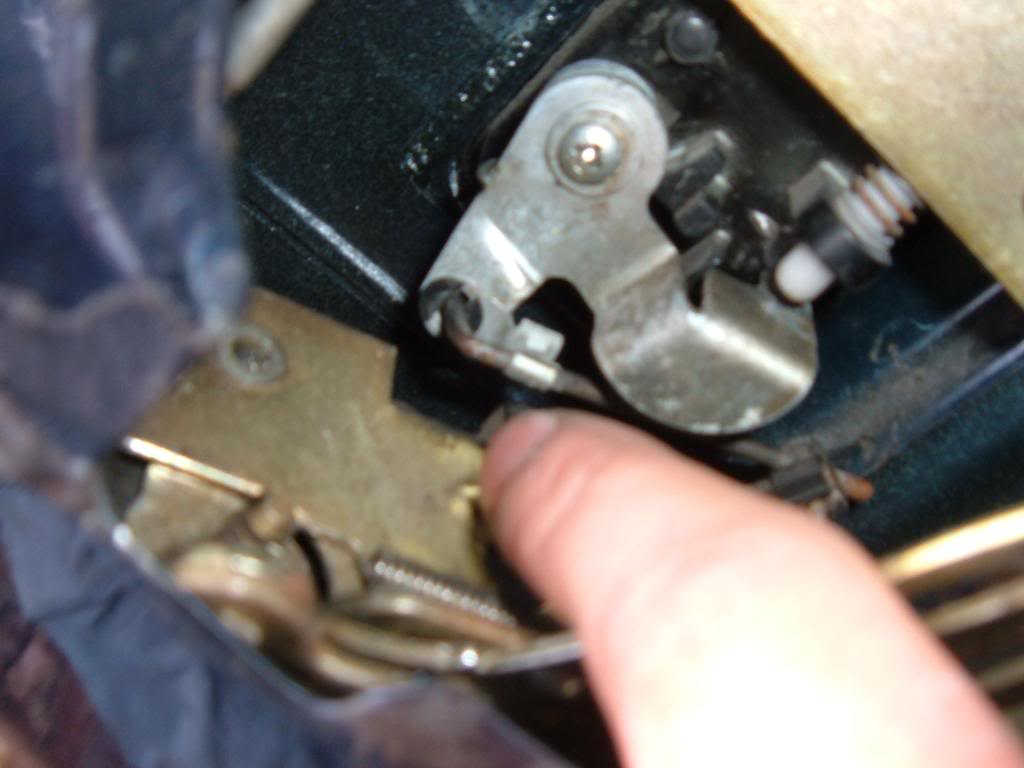

Step12:Slot the latch back into the door and reattach the outer handle linkage, refit the inner handle and the final linkage from the lock pin

Land Rover Discovery Door Spring Replacement (11)

Step13:Then align the latch and loosely refit the two PZ screws to the rear

Land Rover Discovery Door Spring Replacement (12)

Step14:Then fit the bolt from the side of the latch, don’t forget the spacer!

Land Rover Discovery Door Spring Replacement (13)

Test the operation of the latch and tighten up all the screws/bolts then you can rebuild the door card assembly ant’jobs a fish!
