How to Use Autel IM608 Add New Key for Volkswagen Jetta 2013

This instruction show you guide step-by-step guide on how to use Autel IM608 programmer to add new key for Volkswagen Jetta 2013.



Preparations:

A working key

Autel IM608 with XP400 programmer

A new blade key



Procedures:

Build connection between Autel IM608 programmer and XP400 programmer,and connect it Volkswagen Jetta.

Autel-IM608-Add-New-Key-for-Volkswagen-Jetta-2013-1

Use the working key to turn on ignition,but don’t start engine

Autel-IM608-Add-New-Key-for-Volkswagen-Jetta-2013-2

Enter Autel IM608 menu to select “IMMO”–>”Volkswagen”–>”Smart Mode”

After vehicle identification,it will show you vehicle information,and press “Yes”

Autel-IM608-Add-New-Key-for-Volkswagen-Jetta-2013-3

It show you with the description of function,press “OK”

Autel-IM608-Add-New-Key-for-Volkswagen-Jetta-2013-4

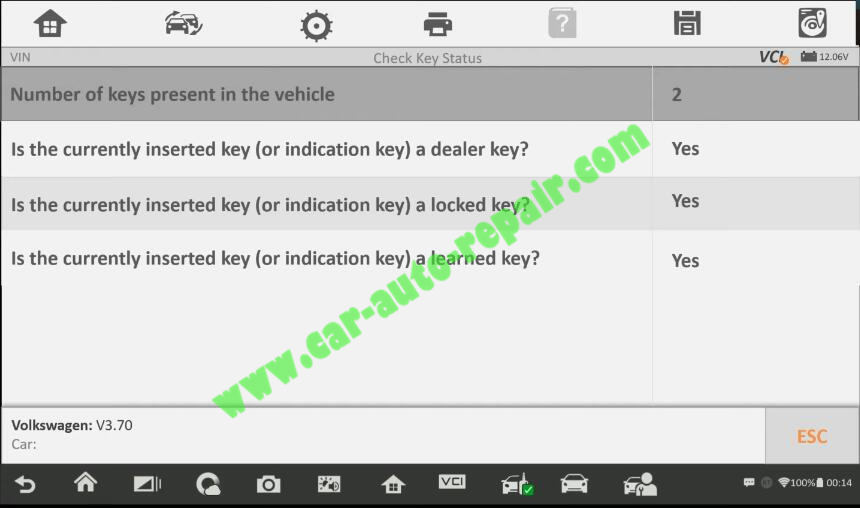

Then it show you with the current working keys,press “ESC” to exist

Autel-IM608-Add-New-Key-for-Volkswagen-Jetta-2013-5

Select “Key Add”

Autel-IM608-Add-New-Key-for-Volkswagen-Jetta-2013-6

If vehicle with Kessy:

The remote start function may fail after using Key Add function.For the vehicle to start,the key need to be pressed close to the key indication area.

Press “Yes”

Autel-IM608-Add-New-Key-for-Volkswagen-Jetta-2013-7

Now Autel IM608 will do new key adding automatically,please just wait.

Autel-IM608-Add-New-Key-for-Volkswagen-Jetta-2013-8

During programming process,the instrument will have black screen,which is normal.

Later it’s screen will illuminate

Autel IM608 will finish 3 steps:

Read IMMO data

Make dealer key

Add key to vehicle

Autel-IM608-Add-New-Key-for-Volkswagen-Jetta-2013-9

When immo data reading done,it will ask you if to make dealer key,press “Yes”

Autel-IM608-Add-New-Key-for-Volkswagen-Jetta-2013-10

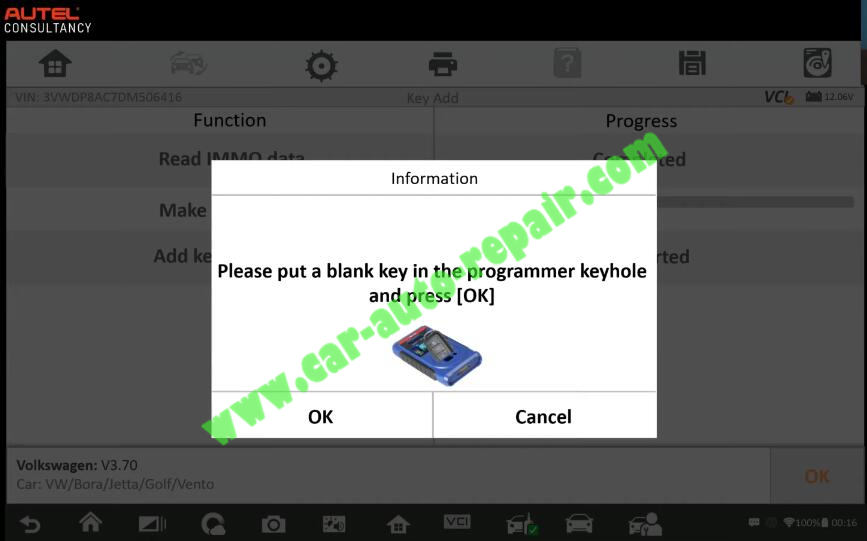

Please put a blank key in the programmer keyhole and press “OK”

Autel-IM608-Add-New-Key-for-Volkswagen-Jetta-2013-11

If you just need add one key,here press “No”

Autel-IM608-Add-New-Key-for-Volkswagen-Jetta-2013-12

Now it will do last step to add key to vehicle

Autel-IM608-Add-New-Key-for-Volkswagen-Jetta-2013-13 Autel-IM608-Add-New-Key-for-Volkswagen-Jetta-2013-14

Done!

Autel-IM608-Add-New-Key-for-Volkswagen-Jetta-2013-15

And for more Volkswagen key programming case,check here:VW Key Programming.
