How to Install E63 AMG Grille on Mercedes W212 2014-2016 facelift models

This article will show you the process about install E63 AMG Grille on Mercedes-Benz E-Class W212 2014-2016 facelift models, this apply for sedan and estate.



Procedures:

Remove rivet part nr A 124990 0492

How-to-Install-E63-AMG-Grille-on-Mercedes-W212-2014-2016-facelift-models-1

Use torx T30 take out two screws

Screw part nr N000000 000825

How-to-Install-E63-AMG-Grille-on-Mercedes-W212-2014-2016-facelift-models-2

Socket 8mm bolt

Screw part nr A001 990 60 36

How-to-Install-E63-AMG-Grille-on-Mercedes-W212-2014-2016-facelift-models-3

Socket 10mm disconnect the ground line

How-to-Install-E63-AMG-Grille-on-Mercedes-W212-2014-2016-facelift-models-4

Torx T30 screw part nr N000000 007095

How-to-Install-E63-AMG-Grille-on-Mercedes-W212-2014-2016-facelift-models-5

Socket 10mm bolt part nr A002 990 7600

How-to-Install-E63-AMG-Grille-on-Mercedes-W212-2014-2016-facelift-models-6

Use trim tool to help remove plastic wedge

How-to-Install-E63-AMG-Grille-on-Mercedes-W212-2014-2016-facelift-models-7

Socket 8mm screw part nr N000000 001454

How-to-Install-E63-AMG-Grille-on-Mercedes-W212-2014-2016-facelift-models-8

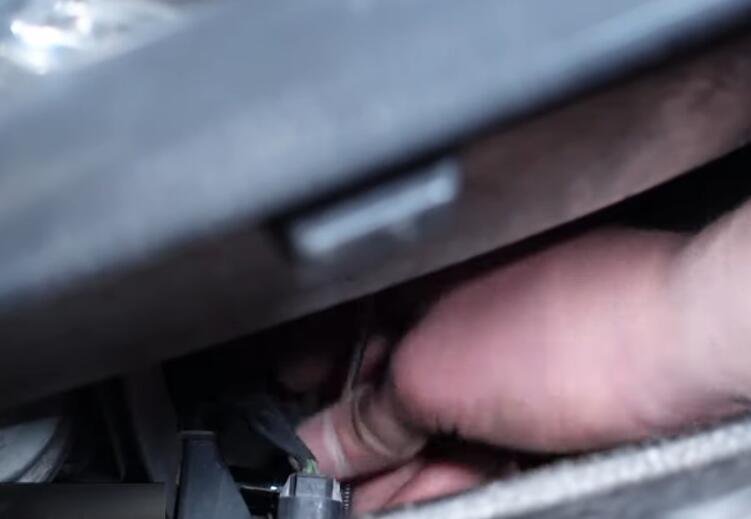

Disconnect temperature sensor,camera cable and main cables

How-to-Install-E63-AMG-Grille-on-Mercedes-W212-2014-2016-facelift-models-9

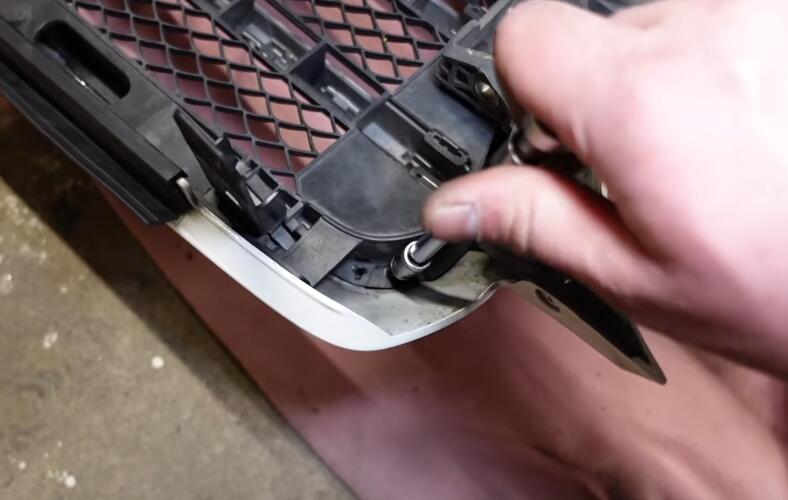

Torx T10

How-to-Install-E63-AMG-Grille-on-Mercedes-W212-2014-2016-facelift-models-10

Drill 4mm for all rivets

How-to-Install-E63-AMG-Grille-on-Mercedes-W212-2014-2016-facelift-models-11

Remove carrier and grille

How-to-Install-E63-AMG-Grille-on-Mercedes-W212-2014-2016-facelift-models-12

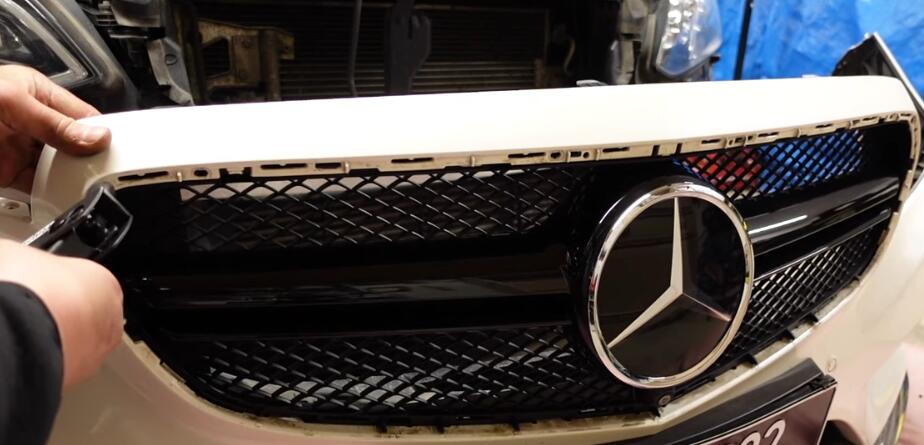

Install new start, then clip back grille and carrier

How-to-Install-E63-AMG-Grille-on-Mercedes-W212-2014-2016-facelift-models-13

Rivet 4mm part nr A 003 990 9497

How-to-Install-E63-AMG-Grille-on-Mercedes-W212-2014-2016-facelift-models-14

Then put everything back in, check the final look

How-to-Install-E63-AMG-Grille-on-Mercedes-W212-2014-2016-facelift-models-15
