How to Install Driver and Configure for Openport 2.0 J2534

Openport 2.0 adapter is capable of communicating with most OBDII compliant vehicle with standard J2534.Here car-auto-repair.com show you guide on how to install and configure driver for Openport 2.0 J2534.

How-to-Install-Driver-and-Configure-for-Openport-2.0-J2534-1



Preparations:

Openport 2.0 driver download here

Openport 2.0 adapter



Procedures:

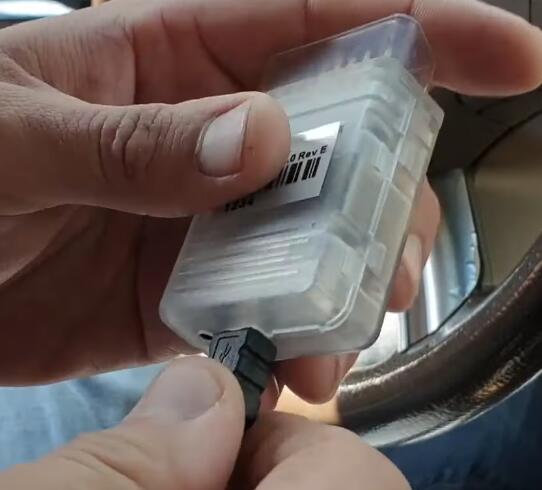

Connect USB cable to laptop and Openport 2.0 adapter

How-to-Install-Driver-and-Configure-for-Openport-2.0-J2534-2 How-to-Install-Driver-and-Configure-for-Openport-2.0-J2534-3



Then your PC will prompt you find a unknown device

Go to “Device Manager” to check there with a yellow exclamation mark

How-to-Install-Driver-and-Configure-for-Openport-2.0-J2534-4

Double click “openport2_setup_1024791.exe” from download link file

Click “Next” to cotinue

How-to-Install-Driver-and-Configure-for-Openport-2.0-J2534-5

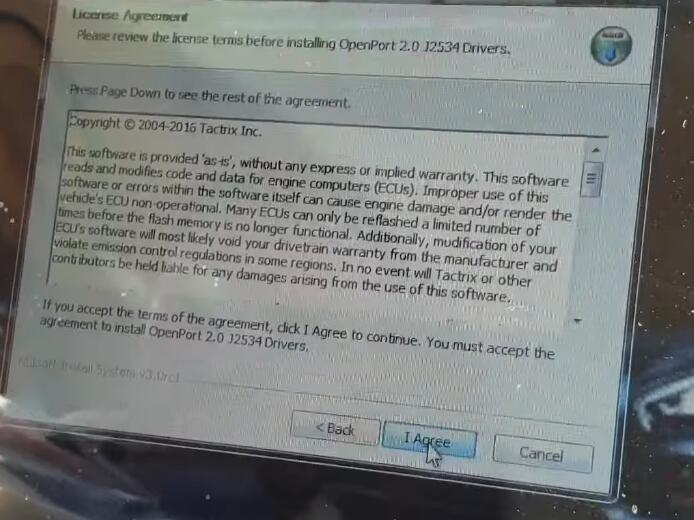

Click “I Agree”

How-to-Install-Driver-and-Configure-for-Openport-2.0-J2534-6

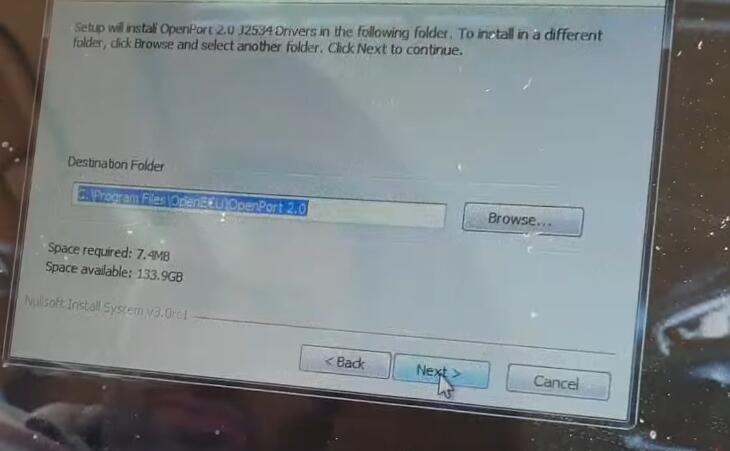

Setup will install OpenPort 2.0 J2534 Drivers in the following folder.(Record the folder driver installed)

To install in a different folder,click “Browse” and select another folder

Here click “Next” to continue

How-to-Install-Driver-and-Configure-for-Openport-2.0-J2534-7

Finish driver installation

How-to-Install-Driver-and-Configure-for-Openport-2.0-J2534-8

Now back to “Device Manager”

Double click “OpenPort 2.0” with yellow exclamation mark

How-to-Install-Driver-and-Configure-for-Openport-2.0-J2534-9

Click “Browse to select local driver”

How-to-Install-Driver-and-Configure-for-Openport-2.0-J2534-10

Now here you need select the driver folder you install before (record before)

Then click “OK” to load driver

How-to-Install-Driver-and-Configure-for-Openport-2.0-J2534-11

After then just wait process

How-to-Install-Driver-and-Configure-for-Openport-2.0-J2534-12

Done

How-to-Install-Driver-and-Configure-for-Openport-2.0-J2534-13

Now back “Device Manager” to check the status,the yellow exclamation mark disappear

How-to-Install-Driver-and-Configure-for-Openport-2.0-J2534-14

Finish!

You can run related software for OpenPort 2.0,like Benz Xentry,MUT-III..
