Ford EEC V ANIL and ENIO Electrical Controller Modules Pinout



INDIGO

Vehicles: With 1.0 8V Rocan engine.



ENIO

Vehicles: With 1.6 8V Rocan engine.



More ECU PINOUT Components:

ECU Modules Repair Pinpout & Components





FRONT

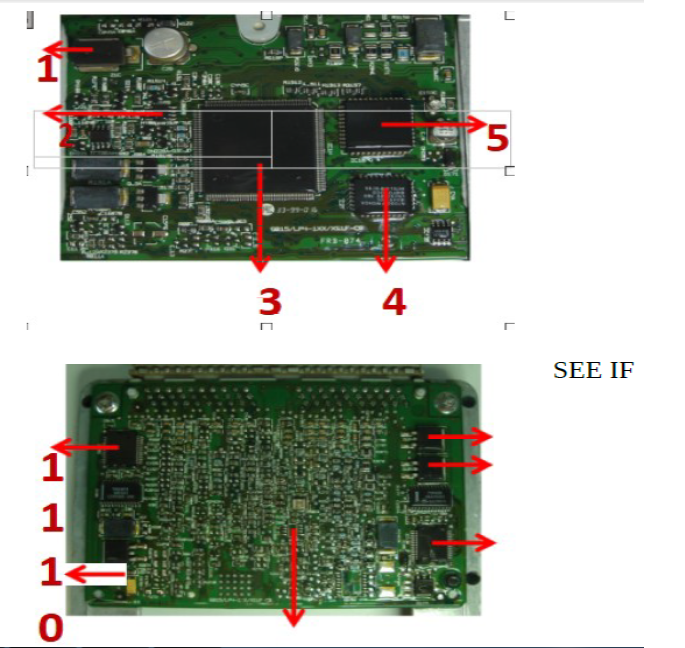

Ford EEC V ANIL and ENIO Electrical Controller Modules Pinout (1)

Main components

  1. Protection diode;
  2. Main rotation input;
  3. Processor;
  4. Eprom memory;
  5. PLD;
  6. Nozzle 1 and 2 / Stepper motor / Pump / Fan;
  7. Coil (Cylinder 2 and 3);
  8. Coil (Cylinder 1 and 4);
  9. Soic immobilizer;
  10. 5V regulator;
  11. Nozzle 3 and 4.

Technical specifications

Special features

. With immobilizer.

Common defects:

. Failure to activate the fan.

Note: The Soic behind the sign, which contains the immobilizer information has the original number 90510 and its similar is 25020.

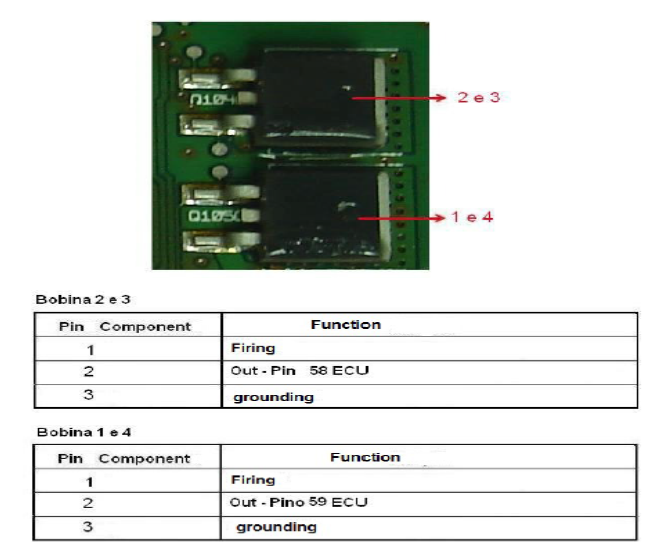

Ignition coil drive

Ford EEC V ANIL and ENIO Electrical Controller Modules Pinout (2)

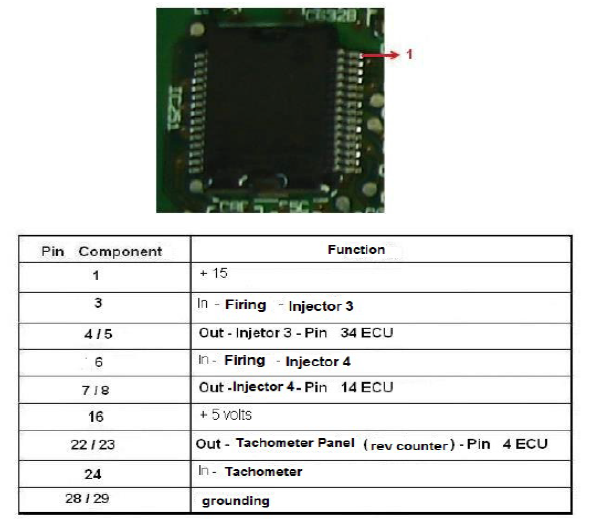

Multi drive – 1034SE001 – 30 pins – Injectors 3 and 4 Revolving account

Triggering by + 5 volts and output is negative.

Ford EEC V ANIL and ENIO Electrical Controller Modules Pinout (3)

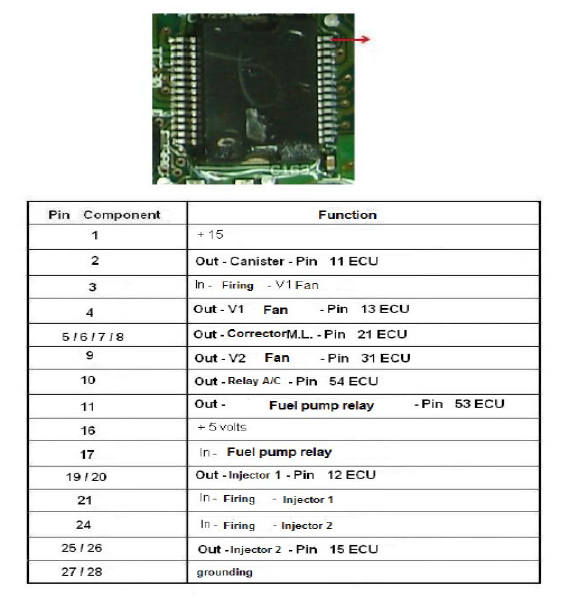

Multi drive – 1035SE001 – 30 pins – Canister – Injectors 1 and 2 – Fuel pump relay – Run corrector slow – Relay A / C – V1 and V2 Cooling

Trip done by +5 volts and negative output.

Ford EEC V ANIL and ENIO Electrical Controller Modules Pinout (4)

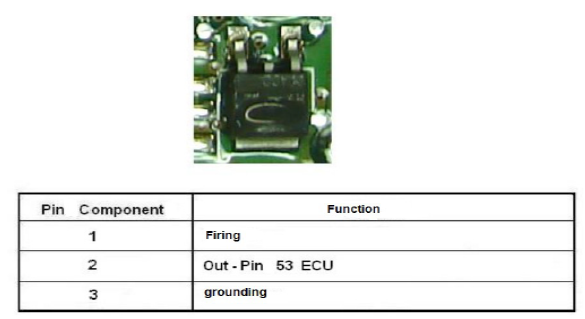

Lambda probe heating control drive

Ford EEC V ANIL and ENIO Electrical Controller Modules Pinout (5)
