AGCO EEM5 DEF Suction Module Tank sensor (CAN)
The DEF suction module with the CAN-bus communication contains a urea level and a urea quality sensor. The suction module is installed in the DEF tank. The tank sensor figure is shown in DEF suction module.
Related Contents:
AGCO 2×4 CANUSB Interface Diagnostics
2026 AGCO EDT Electronic Diagnostic Tool
AGCO WinEEM5 Power Service Tool 9.0
ECU connection
The pin numbers at the ECU:
A56 CAN High
A55 CAN Low
The pin numbers at the sensor:
Pin 1 Supply voltage
Pin 2 Ground
Pin 3 CAN High
Pin 4 CAN Low
Supply through AUX relay T31 Ground terminal

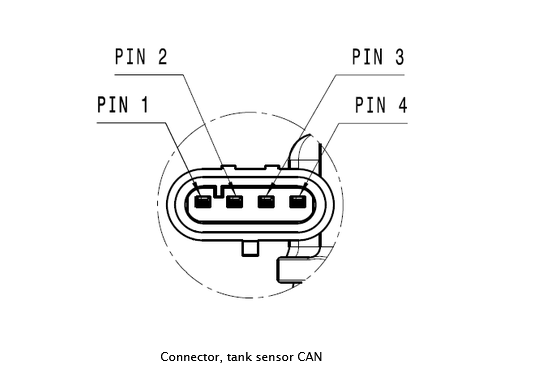

The tank sensor pinout is shown in figure Connector, tank sensor CAN.
