Volvo XC90 New Key Programming by Autel IM508

This instruction show you guide on how to program a new key for Volvo XC90 by Autel IM508 programmer.More key programming for Volvo,please refer to:Volvo Key Programming



Device Used:

Autel IM508 Programmer

Volvo ID 48 Chip



Procedures:

Remove CEM from Volvo XC90

CEM is located below dashboard

Note:before remove CEM,pls disconnect battery terminal

Volvo-XC90-New-Key-Programming-by-Autel-IM508-1

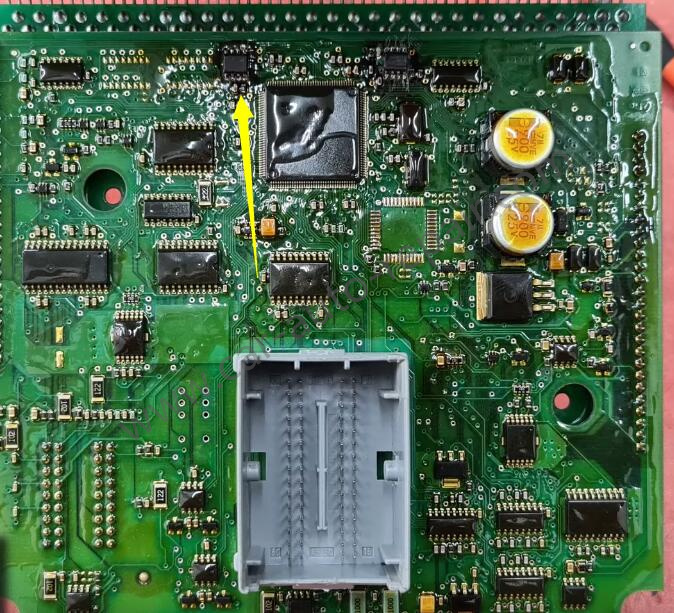

Remove cover of CEM to find 93C86 EEPROM chip

Volvo-XC90-New-Key-Programming-by-Autel-IM508-2

Volvo-XC90-New-Key-Programming-by-Autel-IM508-3

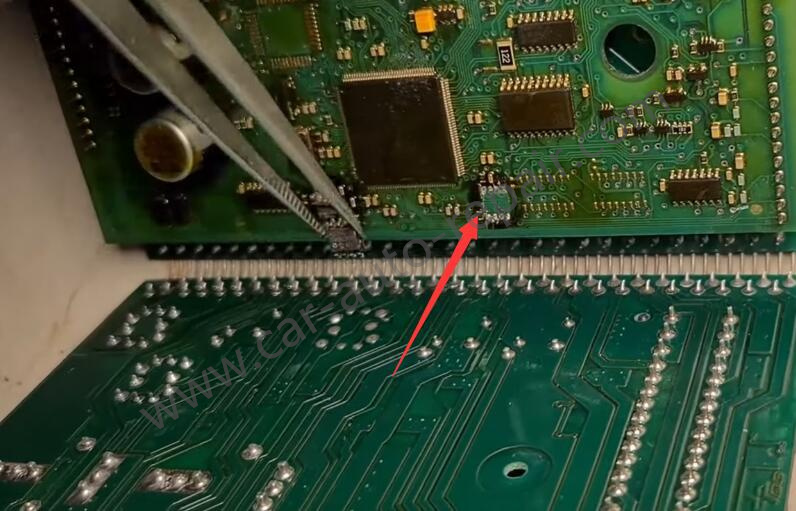

Remove 93C86 EEPROM chip from PCB

Volvo-XC90-New-Key-Programming-by-Autel-IM508-4

Install 93C86 chip on adapter clip cable

Volvo-XC90-New-Key-Programming-by-Autel-IM508-5

Run Autel IM508 Programmer,then select “Programmer”

Volvo-XC90-New-Key-Programming-by-Autel-IM508-6

Select “Write key via dump”

Volvo-XC90-New-Key-Programming-by-Autel-IM508-7

Select “Europe”–>”Volvo”–>”XC90”–>”2004-93C86”

Volvo-XC90-New-Key-Programming-by-Autel-IM508-8 Volvo-XC90-New-Key-Programming-by-Autel-IM508-9 Volvo-XC90-New-Key-Programming-by-Autel-IM508-10 Volvo-XC90-New-Key-Programming-by-Autel-IM508-11



Press “One-tough Processing”–>”Save the read file”

Save the file that you read from 93C86 chip

Volvo-XC90-New-Key-Programming-by-Autel-IM508-12

Then select any key position

Volvo-XC90-New-Key-Programming-by-Autel-IM508-13

Then put a ID 48 transponder into APA001 adapter of Autel IM508 programmer

Volvo-XC90-New-Key-Programming-by-Autel-IM508-14

Back to screen to press “Make Key”

Volvo-XC90-New-Key-Programming-by-Autel-IM508-15

Click “Yes” to save the newly generated file

Volvo-XC90-New-Key-Programming-by-Autel-IM508-16

Now it show “The operation is complete and the key is ready for use”

Volvo-XC90-New-Key-Programming-by-Autel-IM508-17

And now key information show IM508 show the key position you selected before show “Used”

Volvo-XC90-New-Key-Programming-by-Autel-IM508-18

Solder 93C86 EEPROM chip back to PCB,then install CEM back on Volvo XC90

Volvo-XC90-New-Key-Programming-by-Autel-IM508-19 Volvo-XC90-New-Key-Programming-by-Autel-IM508-20



Start Volvo XC90 engine by put ID48 chip programmed just now

Volvo-XC90-New-Key-Programming-by-Autel-IM508-21

Done!
