Volvo V50 2005 All Key Lost Programming by Autel IM608 Pro

This instruction show you guide on how to use Autel IM608 Pro EEPROM function to do all key lost programming for Volvo V50 2005.If you want more topic for car keys programming,please refer to:Car Key Programming Guide

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-1

Preparations:

Autel MaxiIM IM608 PRO Auto Key Programmer



Procedures:

Firstly,you need remove CEM module from Volvo V50,it is locate on passenger side and behind the glove box.Volvo trouble repair

Run Autel IM608 PRO,then select “Programmer”–>”Chip(EEPROM,MCU,ECU)”–>”Chip read & write”–>”Immobilizer”–>”Volvo”–>”CEM TYPE3>MC9S12DT256>RW”

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-2

Select “EEPROM”

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-3

Select “Schematic diagram”

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-4

Now here show the diagram and the operation guide:

Step1:APA106 wire harness is only available for XP401/XP404 programmer.

APA109 wire harness is only available for XP401 Pro/XP400 Pro programmer.

Step2:Check the circuit board of the current components,and identify the corresponding circuit board from the pictures below

Step3:The two chips are connected in the same way,and connect,read or write data as illustrated in the picture.

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-5

Follow the guide and picture to solder the wires on the CEM module PCB

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-6

Then back to menu to select “Read”

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-7

And then save the bin file on Autel IM608 Pro tablet

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-8

Back to menu to select “Write key via dump”,then press “YES”

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-9

Select “Europe”–>”Volvo”–>”V50”–>”2004-2007 MC9S12DT256”

After then press “Load data”

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-10

Now here load the data bin file you save before.

Here we select a unused key number

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-11

Put 48chip into XP400 programmer slot,,then press “Make Key”

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-12

Add a key

Key number:4

Please press “YES” to continue

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-13

Here press “Yes” to save newly generated file

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-14

Then please save file on tablet

Key is ready

Rewrite the new bin file to chip to complete operation

Press “OK”

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-15

Back to menu select ”Chip(EEPROM,MCU,ECU)”–>”Chip read & write”–>”Immobilizer””Volvo”–>”CEM TYPE3>MC9S12DT256>RW”–>”EEPROM”–>”Write”

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-16

Select new bin file you saved before

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-17

Then wait written processing successfully

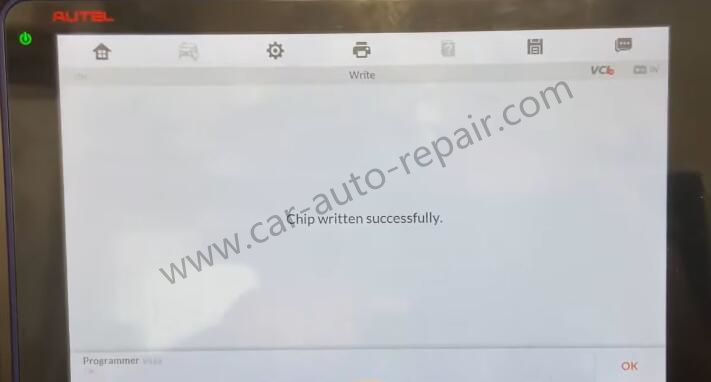

Volvo-V50-2005-All-Key-Lost-Programming-by-Autel-IM608-Pro-18

Ok,now please install CEM module back on Volvo V50

Then you can test new key programmed.(notice:remote function can not work)

More Autel devices real feedbacks,please refer to:Autel Devices Feedback
