Steering Angle Sensor Calibration by G-Scan on Chevrolet Bolt EV

Here is a short article of Steering Wheel Angle Sensor Learn function by G-Scan on 2018 Chevrolet Bolt EV. This calibration is required after replacing steering angle sensor.If you want to know more about Chevrolet Repair cases, please visit Chevrolet.

Steering-Angle-Sensor-Calibration-by-G-Scan-on-Chevrolet-Bolt-EV-1

Steps

Connect G-Scan3 to Cherolet Bolt EV obd port, then enter menu to select “Diagnosis”

Steering-Angle-Sensor-Calibration-by-G-Scan-on-Chevrolet-Bolt-EV-2

Select “GM”–> “AUTOMATIC SELECTION”

Steering-Angle-Sensor-Calibration-by-G-Scan-on-Chevrolet-Bolt-EV-3

Click “OK”

Steering-Angle-Sensor-Calibration-by-G-Scan-on-Chevrolet-Bolt-EV-4

Click “OK”

Steering-Angle-Sensor-Calibration-by-G-Scan-on-Chevrolet-Bolt-EV-5

If you replace the steering wheel angle sensor, you need to perform “Steering Wheel Angle Sensor Learn” function using a scan tool.

Select “Steering Wheel Angle Sensor Learn”

Steering-Angle-Sensor-Calibration-by-G-Scan-on-Chevrolet-Bolt-EV-6

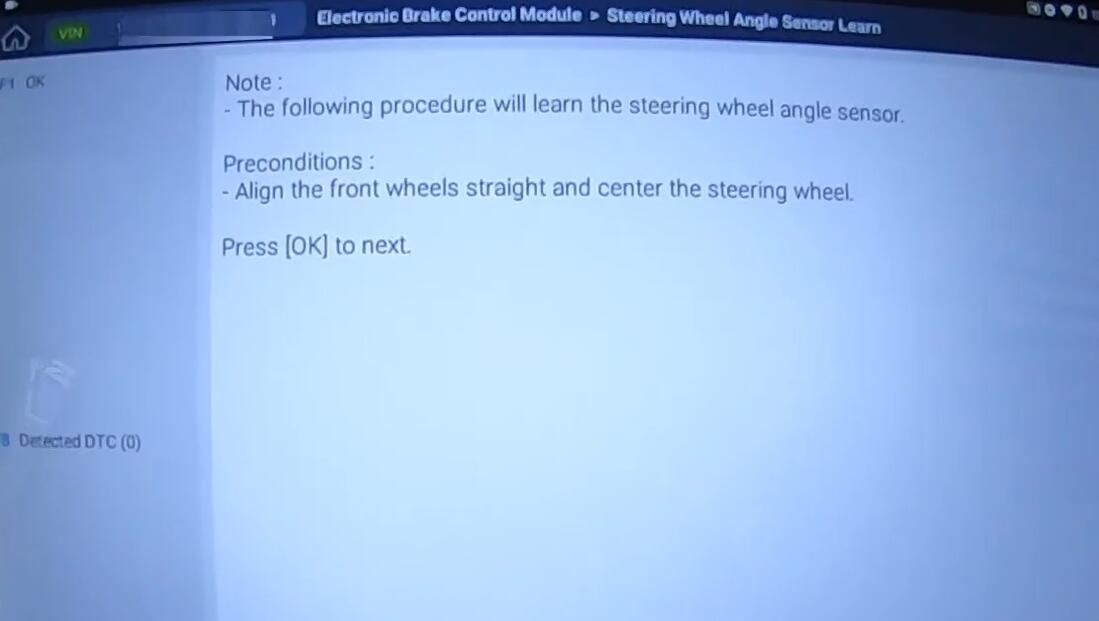

Align the front wheels straight and center the steering wheel, after that click “OK”

Steering-Angle-Sensor-Calibration-by-G-Scan-on-Chevrolet-Bolt-EV-7

Click “OK”

Steering-Angle-Sensor-Calibration-by-G-Scan-on-Chevrolet-Bolt-EV-8

Function is completed.

As always, if you want to know more about G-Scan function, please refer to G-Scan test cases.
