PSCM Installation Function for 2013 LINCOLN(FORD) MKS by G-Scan

This post will show you guide how to use G-Scan to learn Power Steering Control Module (PSCM) for 2013Ford/Lincoln MKS. For more function of G-Scan, please refer to G-Scan2 Test Projects.



Procedure:

Before replacing steering rack assembly, you need to connect a scan tool and be in initialisation mode.

Connect G-scan, click “Diagnosis”

PSCM-Installation-Function-for-2013-LINCOLNFORD-MKS-by-G-Scan-1

Select Ford USA

PSCM-Installation-Function-for-2013-LINCOLNFORD-MKS-by-G-Scan-2

Select “AUTOMATIC SELECTION” and correct engine size

PSCM-Installation-Function-for-2013-LINCOLNFORD-MKS-by-G-Scan-3

Click “System Search”

PSCM-Installation-Function-for-2013-LINCOLNFORD-MKS-by-G-Scan-4

System Search will scan all available system in the vehicle.

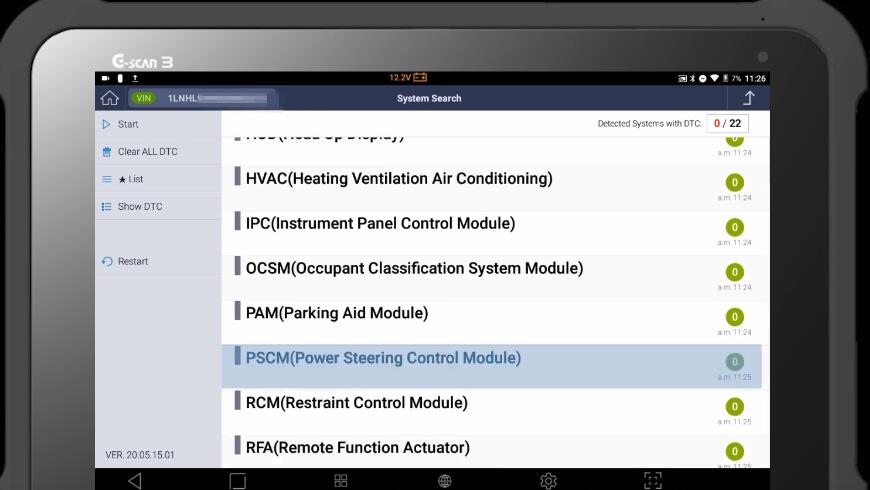

After searching finished, scroll down and select “PSCM(Power Steering Control Module)”

PSCM-Installation-Function-for-2013-LINCOLNFORD-MKS-by-G-Scan-5

Select “Special Function”

PSCM-Installation-Function-for-2013-LINCOLNFORD-MKS-by-G-Scan-6

Select “PSCM Module Installation”

PSCM-Installation-Function-for-2013-LINCOLNFORD-MKS-by-G-Scan-7

Turn the IG ON and hit “OK” button

PSCM-Installation-Function-for-2013-LINCOLNFORD-MKS-by-G-Scan-8

Turn the IG OFF and hit “OK” button.

PSCM-Installation-Function-for-2013-LINCOLNFORD-MKS-by-G-Scan-9

Replace entire steering rack assembly

PSCM-Installation-Function-for-2013-LINCOLNFORD-MKS-by-G-Scan-10

After replacement, go back to the G-scan and finish up the function.

PSCM-Installation-Function-for-2013-LINCOLNFORD-MKS-by-G-Scan-11

Click “OK” button to continue

PSCM-Installation-Function-for-2013-LINCOLNFORD-MKS-by-G-Scan-12

Turn the IG ON and click “OK” button

PSCM-Installation-Function-for-2013-LINCOLNFORD-MKS-by-G-Scan-13

Turn the IG OFF and click “OK” button

PSCM-Installation-Function-for-2013-LINCOLNFORD-MKS-by-G-Scan-14

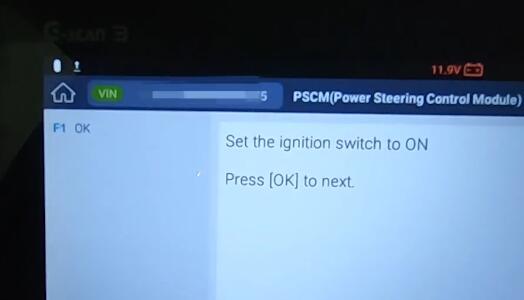

Turn the IG ON again and click “OK” button

PSCM-Installation-Function-for-2013-LINCOLNFORD-MKS-by-G-Scan-15

Module Configuration Complete.

PSCM-Installation-Function-for-2013-LINCOLNFORD-MKS-by-G-Scan-16

Installation is completed successfully.
