Needle Sweep staging calibration by VCDS for Seat Leon

This instruction show you guide on how to use VCDS to calibrate dashboard needle sweep staging.For more VCDS projects,please check here:VCDS Test Feedback.

Needle-Sweep-staging-calibration-by-VCDS-for-Seat-Leon-1

Preparations:

How to Configure VCDS & Diagnostic Cable for Your Laptop

VCDS 17.8.1 Full+Loader V2/V4 Free Download



Steps:

Connect VCDS cable to your vehicle,then run software and click “Select Control Module”

Needle-Sweep-staging-calibration-by-VCDS-for-Seat-Leon-2

Select “17-Instruments”

Needle-Sweep-staging-calibration-by-VCDS-for-Seat-Leon-3

Select “Adaptation-10”

Needle-Sweep-staging-calibration-by-VCDS-for-Seat-Leon-4

Scroll down and search for “ IDE01087-Staging”

Needle-Sweep-staging-calibration-by-VCDS-for-Seat-Leon-5

Find “New Value” and hit it, select “Active”

Needle-Sweep-staging-calibration-by-VCDS-for-Seat-Leon-6

Select “Do It” and “Yes”

Needle-Sweep-staging-calibration-by-VCDS-for-Seat-Leon-7

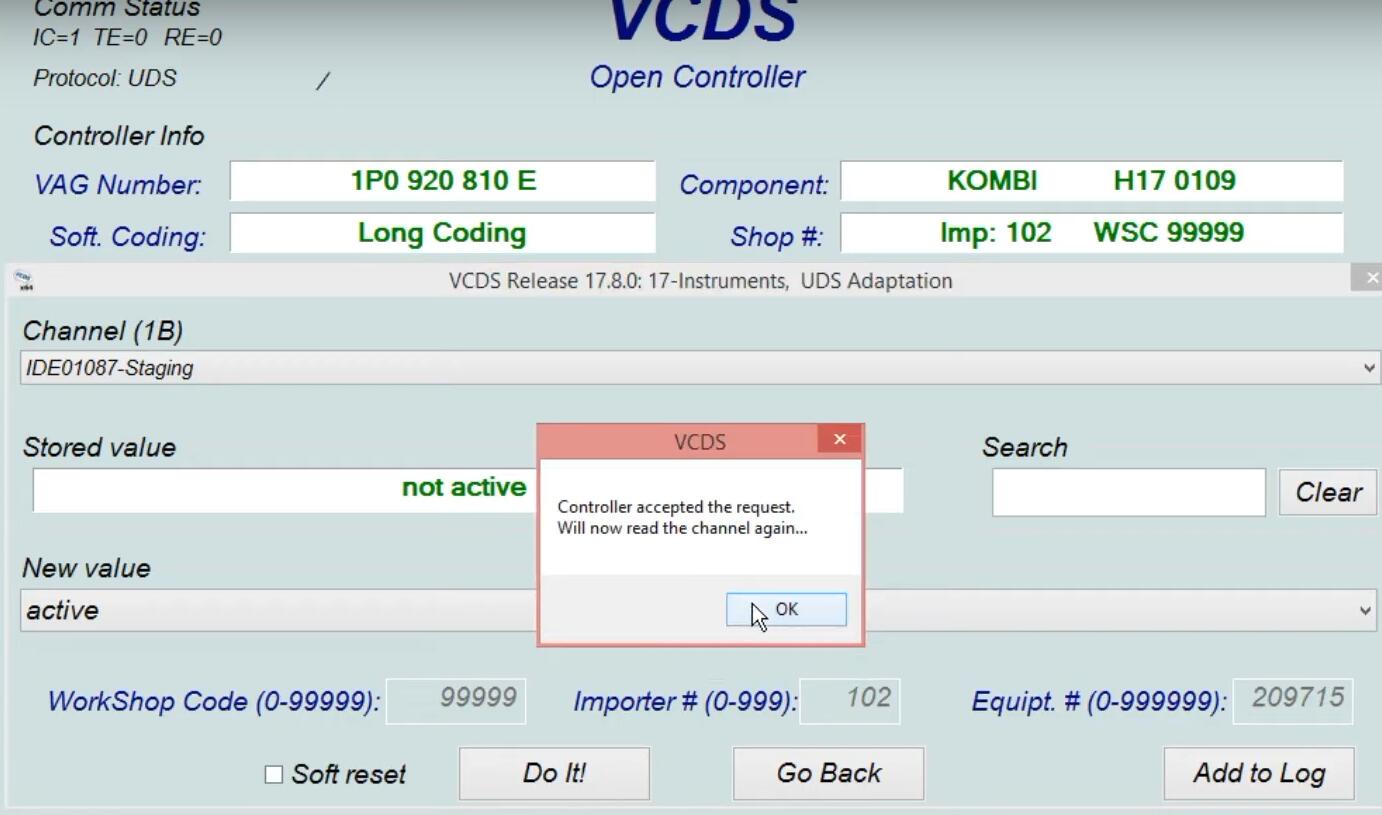

It shows controller accepted the request, will now read the channel again…. Hit “OK”

Needle-Sweep-staging-calibration-by-VCDS-for-Seat-Leon-8

Hit “Go Back” , Now calibration is done.

Needle-Sweep-staging-calibration-by-VCDS-for-Seat-Leon-9



If you want to know more about Seat Neon, please refer to Seat trouble repair.
