HP Tuner MPVI2 Beginner User Guide:Download,Install & How to Use

HP Tuner MPVI2, the latest generation of hardware from HP Tuners. The MPVI2 comes packaged with VCM Editor and VCM Scanner and programming/USB cables, making up the essentials of VCM Suite, bringing you one of the most powerful and inclusive scanning, diagnostic, logging and calibration products on the market. Not to mention full support for our latest rendition of Track Addict, whether you frequent the drag strip, circuit, autocross or off-road the MPVI2 has the fastest scanning, logging and data transmission rates to ensure you capture everything.

PRO FEATURES

The Pro Feature Set takes your MPVI2 to the next level. It includes a Pro-Link cable and enhanced firmware, allowing you to log additional, analog signals that are not part of the factory ECM. It comes with a free Pro-Link cable, allowing you log up to two analog inputs with the Pro Feature Set. More Pro Features are coming soon, which will be available to all Pro users!

111



HP Tuner MPVI2 Functions List:

Read diagnostic data in real time

Read & clear DTCs

Command control functions

Read & write vehicle modules data

Adjust Parameters



HP Tuner MPVI2 Support Vehicle Models:

AUDI

AUDI/VW ADDITIONAL SUPPORTED CONTROLLERS

BUICK

CADILLAC

CHEVROLET

CHEVROLET PERFORMANCE

CHRYSLER

DAEWOO

DODGE

DODGE/CHRYSLER/JEEP/RAM ADDITIONAL SUPPORTED CONTROLLERS

FORD

FORD ADDITIONAL SUPPORTED CONTROLLERS

FRPP

GM ADDITIONAL SUPPORTED CONTROLLERS

GMC

HOLDEN

HUMMER

HYUNDAI

INFINITI

ISUZU

JAGUAR

JAGUAR/LAND ROVER ADDITIONAL SUPPORTED CONTROLLERS

JEEP

LAND ROVER

LINCOLN

MERCEDES

MERCURY

MOPAR PERFORMANCE

NISSAN

OLDSMOBILE

OPEL

PONTIAC

RAM

SAAB

SATURN

SUBARU

SUZUKI

TOYOTA

VAUXHALL

VOLKSWAGEN

Detail information about car list supported: https://www.hptuners.com/vehicles/



HP Tuner MPVI2 Software Free Download

VCM Suite Latest Full Version Download

VCM Suite Latest BETA Download

Download MPVI2 Drivers

Download MPVI Standard & Professional Drivers



How to Install HP Tuner MPVI2 Software

After downloading done,double click “VCM Suite”

hptuner-mpvi2-softeware-installation-1

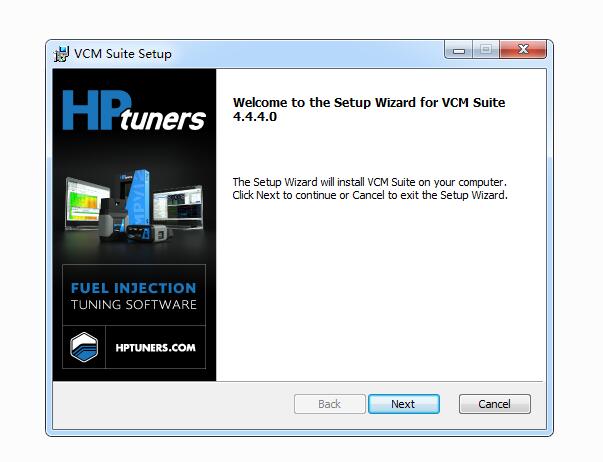

Click “Next” to install VCM Suit

hptuner-mpvi2-softeware-installation-2

Check “I accept the terms in the license Agreemet”,then click “Next”

hptuner-mpvi2-softeware-installation-3

Then click “Next” to install the default or click “Change ” to choose another

hptuner-mpvi2-softeware-installation-4

Click “Install” to begin the installation

hptuner-mpvi2-softeware-installation-5

HP Tuner MPVI2 VCM Suite setup complete

hptuner-mpvi2-softeware-installation-6



How to Add Your MPVI2 Device to Your Account?

Visit HPtuners official website here:https://www.hptuners.com/my-account/ to register a account.Just input your email address and set a password for you HP Tuner account

hptuner-mpvi2-interface-import-1

After the finish registeration,login and click “My Devices” at left menu option.Here it ask you to input your HP Tuner MPVI2 serial number and verification ID

hptuner-mpvi2-interface-import-2

Connect the USB cable to HP Tuner MPVI2 adapter and plug the USB adapter to your PC

hptuner-mpvi2-interface-import-3 hptuner-mpvi2-interface-import-4

Now run HP Tuner VCM Editor software

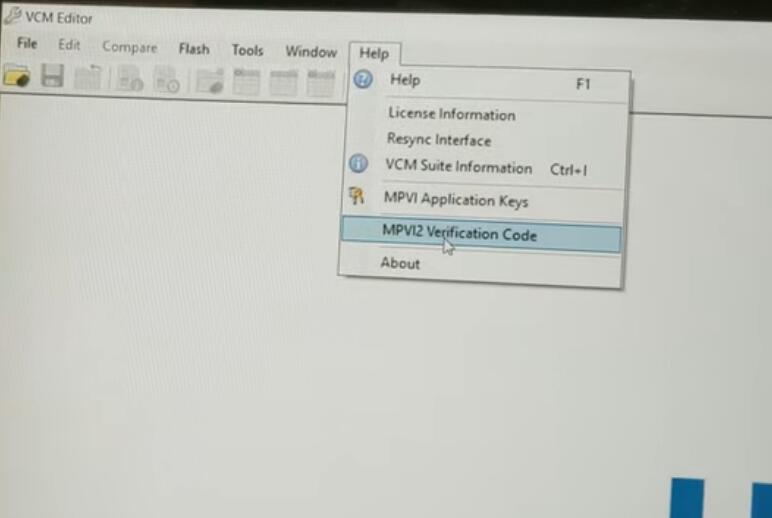

Click “Help”–>”MPVI2 Verification Code”

hptuner-mpvi2-interface-import-5

Then your HP Tuner MPVI2 device serial number and verification code will show as below

hptuner-mpvi2-interface-import-6

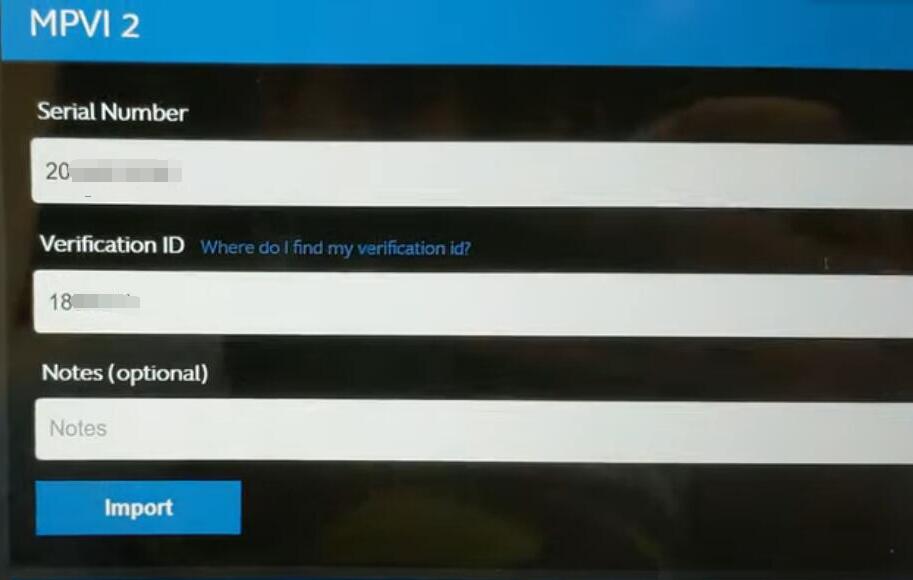

Input serial number and verification ID,click “Import” button

1

Now you can find your HP Tuner MPVI2 device have imported.You see that there is zero credits.If you tune with this you will want to add credits as needed.

hptuner-mpvi2-interface-import-8



What is the difference between stander version and the pro version?

Pro version allows you to log vehicle data without a laptop, allows for Bluetooth connectivity, and pro includes the adapter that lets you wire in other sensors like a wideband 02 for more accurate fuel tuning. Pro features can be added to the standard MPVI2 at a later date if you wanted. Standard version still lets you read, edit, and write tune calibrations to the PCM as well as log vehicle data, but it requires the laptop be connected via cable.





If need HP Tuner MPVI2 interface,please visit HPTuner Official Amazon Shop
