How to Remove and Install Throttle Position Sensor for Chevrolet Avio

This instruction show you guide on how to remove and install throttle position sensor for Chevrolet Avio. More repair case for Chevrolet,please refer to Chevrolet Trouble Repair



Related Contents:

GM EPC GMIO GMNA General Motors EPC 2021 2017 Free Download

GM GDS2 2019 v20.3.05100 Software Free Download



Procedures:

Removal Procedure

1.Disconnect the battery negative cable.

2.Remove the air cleaner assembly.

3.Disconnect the throttle position sensor (TPS) connector

How-to-Remove-and-Install-Throttle-Position-Sensor-for-Chevrolet-Avio-1

4.Remove the TPS retaining bolts (1).

5.Remove the TPS (2).



Installation Procedure

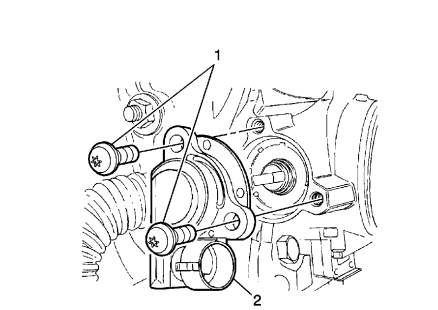

How-to-Remove-and-Install-Throttle-Position-Sensor-for-Chevrolet-Avio-2

1.Install the TPS (2).

2.Install the TPS retaining bolts (1) and tighten to 2.7 N·m (23.9 lb in).

3.Connect the TPS connector.

4.Install the air cleaner assembly.

5.Connect the battery negative cable.
