How to Make Your Own Charge Motion Delete Plates

This post show the guide on how to make your own charge motion delete plates with your stock ones.Hope it will enlightment your work.



What you need to make charge motion delete plates:

A rotary tool

1 or 2 sticks of quick steel

A drill with tipes

A hammer.



Procedures:

Ok so here is how they look when you take them out.

Make Your Own Charge Motion Delete Plates (1)

First thing you want to do is take the retainer pin out which is right in the middle as show in the pictures below.

Make Your Own Charge Motion Delete Plates (2)

To turn take it out just flip it over. Drill a hole right in the spot where the pin is until u can see the pin.

Make Your Own Charge Motion Delete Plates (3)

After doing this u could use a nail or a piece of metal and the hammer to take the retainer pin as show

Make Your Own Charge Motion Delete Plates (4) Make Your Own Charge Motion Delete Plates (5)

With the pin out now you can go on and remove the butterflies off. To do this you could either use the drill or the rotary tool with a stone.

Make Your Own Charge Motion Delete Plates (6) Make Your Own Charge Motion Delete Plates (7)

After grinding all 3 retainers just take the butterfly off and do the same to all 4 of them.

Make Your Own Charge Motion Delete Plates (8)

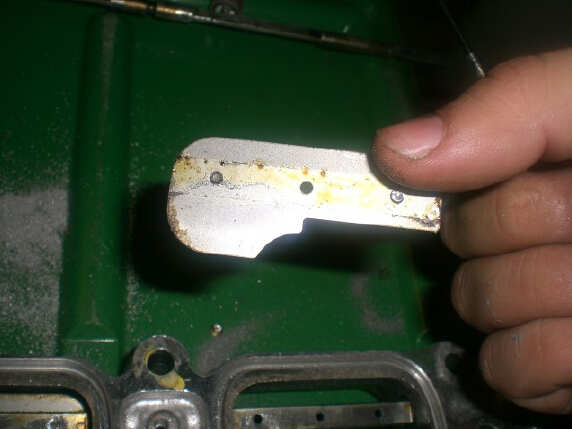

After removing all butterflies now you can take the stick or whatever that piece would bell called out. You my have to use brute force to take it out since there are some bearings that my make this a little hard to take out.

Make Your Own Charge Motion Delete Plates (9) Make Your Own Charge Motion Delete Plates (10) Make Your Own Charge Motion Delete Plates (11)

And the final product after all this looks like this.

Make Your Own Charge Motion Delete Plates (11)

Now to take care of the holes you would need to use the quick steel follow the directions. On the back and use it to fill every hole.

Make Your Own Charge Motion Delete Plates (13)

After you are done filling all the holes it should look like this.

Make Your Own Charge Motion Delete Plates (14)

Now let it dry and harden it takes a few minutes but I rather left it for 24 hours. After its hard enough I can start using the rotary tool with the stones, sanding polishing tips

Make Your Own Charge Motion Delete Plates (15)

After you use the stones and sanding it should start looking like this.

Make Your Own Charge Motion Delete Plates (16)

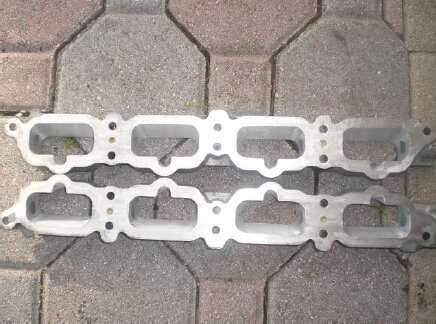

And here is the last product.

Make Your Own Charge Motion Delete Plates (17) Make Your Own Charge Motion Delete Plates (18) Make Your Own Charge Motion Delete Plates (19) Make Your Own Charge Motion Delete Plates (20)

And now to compare to a brand name that were in my car. I used the same process to port match them to my intake manifold and head ports. Here they side to side.

Make Your Own Charge Motion Delete Plates (21)

Make Your Own Charge Motion Delete Plates (22) Make Your Own Charge Motion Delete Plates (23) Make Your Own Charge Motion Delete Plates (24)

I did the same thing to a friends car and its been running for some time now and everything is perfect. So is my car no problems.with all this said I hope you guys like it.
