How to Install Custom Benz Lighted LED Colored Star Emblem on Benz W204

This article will show you how to install a custom Mercedes-Benz lighted LED Colored vehicle decklid star emblem on Benz C-Class W204.You can wire up this light when you turn on your headlights and tail lights. In my case, we need it light up only when I hit the brake.

More cases about W204, please refer to BENZ W204 PROJECT.



Procedures:

Extend about ten feet the positive wire and two feet ground wire since the original line is too short

Remove 4 torx screws by screwdriver

How-to-Install-Custom-Benz-Lighted-LED-Colored-Star-Emblem-on-Benz-W204-1

Remove the plastic trim screws by trim removal tool

How-to-Install-Custom-Benz-Lighted-LED-Colored-Star-Emblem-on-Benz-W204-2

Disconnect the little emergency button so that you can completely take the trim panel off from your vehicle

How-to-Install-Custom-Benz-Lighted-LED-Colored-Star-Emblem-on-Benz-W204-3

Remove three white posts to release the star from the trunk

How-to-Install-Custom-Benz-Lighted-LED-Colored-Star-Emblem-on-Benz-W204-4

Get some rubbing alcohol and thoroughly clean where the vehicle star was at

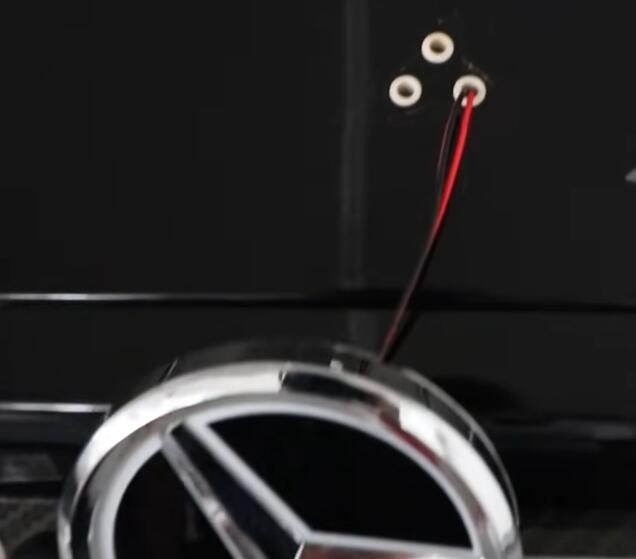

Run the wires of the brand-new star through one of the three holes

How-to-Install-Custom-Benz-Lighted-LED-Colored-Star-Emblem-on-Benz-W204-5

For the positive wire, ran it all the way across the trunk down the hinge, behind the panel and right to the area where the fuse box is at.

Tapped it into the blue wire going into the connector for the taillight

How-to-Install-Custom-Benz-Lighted-LED-Colored-Star-Emblem-on-Benz-W204-7

For ground wire, wired it to the brown wire.

How-to-Install-Custom-Benz-Lighted-LED-Colored-Star-Emblem-on-Benz-W204-6

Put some waterproof tape or use some silicone cover the hole

How-to-Install-Custom-Benz-Lighted-LED-Colored-Star-Emblem-on-Benz-W204-8

I put some double-sided tape in the center area to thicken up the center area since the star backing is flat but where is your vehicle is curved. Then mount the star and push it on firmly to the vehicle

Let’s check how is it look

How-to-Install-Custom-Benz-Lighted-LED-Colored-Star-Emblem-on-Benz-W204-9
