How to Do Actuator Tests for Toyota by ToCOM

ToCOM supports actuator tests in wide range of control units. Three types of actuations exist:

  • simple start/stop or on/off actuators (e.g. cooling fan),
  • actuators with available selections (e.g. speedometer/rpm gauges),
  • actuators with user settable values (e.g. target idle rpm).

This instruction shows you guide on how to do actuator tests for Toyota by ToCOM, include first two types tutorial.

Preparation:

ToCOM For Toyota/Lexus/Scion Diagnostic software Free Download



Procedures:

Select “Body”,then scroll down and search for “Instrument cluster”

How-to-Do-Actuator-Tests-for-Toyota-by-ToCOM-1

Select “Actuator activation”

How-to-Do-Actuator-Tests-for-Toyota-by-ToCOM-2

Select “Check Engine Indicator”, click “Run Test”

How-to-Do-Actuator-Tests-for-Toyota-by-ToCOM-3

Click “Turn ON”

How-to-Do-Actuator-Tests-for-Toyota-by-ToCOM-4

Click “Turn OFF”

How-to-Do-Actuator-Tests-for-Toyota-by-ToCOM-5

Click “Turn ON” again

How-to-Do-Actuator-Tests-for-Toyota-by-ToCOM-6

Click “Stop”

How-to-Do-Actuator-Tests-for-Toyota-by-ToCOM-7

Select actuator from the list, scroll down and click “Tachometer Operation”–>”Run Test”

How-to-Do-Actuator-Tests-for-Toyota-by-ToCOM-8

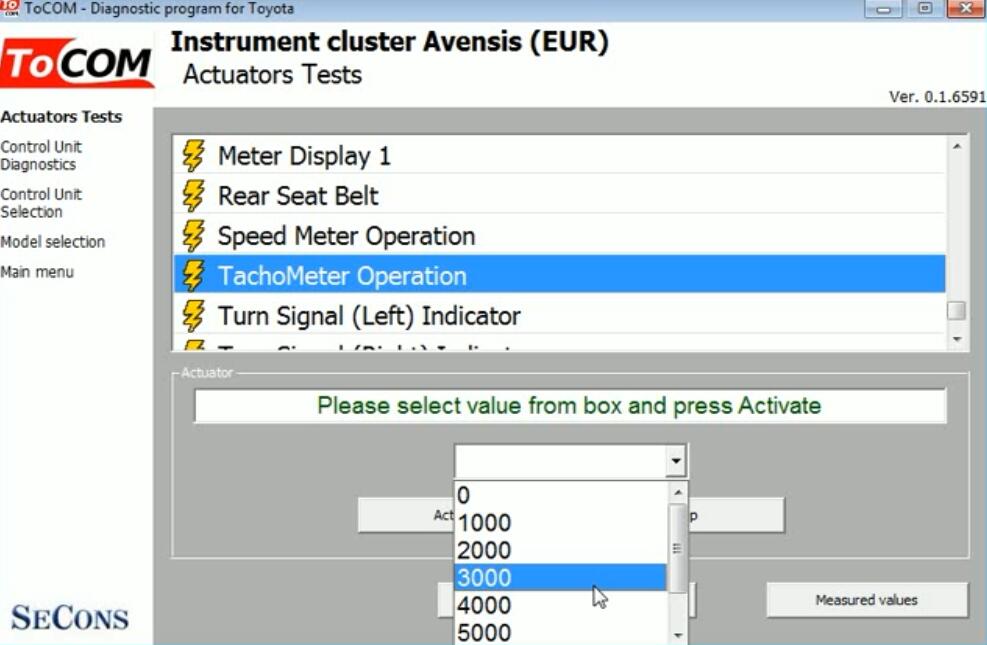

Select “3000”–”Activate”

How-to-Do-Actuator-Tests-for-Toyota-by-ToCOM-9

Change to “5000” then “Activate”

How-to-Do-Actuator-Tests-for-Toyota-by-ToCOM-10

Change to “0” then “Activate”

How-to-Do-Actuator-Tests-for-Toyota-by-ToCOM-11

Click “Stop”

How-to-Do-Actuator-Tests-for-Toyota-by-ToCOM-12

Tests are finished.
