BMW F Chassis 2011 Bleeding ABS Brake Operation Guide (Video)

This article show the guide on how to program ABS brake bleeding operation method for BMW F Chassis 2011.More step by step detail operation instruction,pls watch the video guide at end of article.Hope it helps.



Here are some other topic about ABS bleeding:

VW Tiguan Bleeding ABS Brake Pump By X431

How To Bleeding ABS Brake System Correctly For Your Car





Procedures of BMW F chassis ABS brake exhaust gudie:



Connect Launch X431 diagnostic tool to the vehicle and enter the software menu,select BMW V49.30.Processing…please wait…

Note:The software can diagnose the elec,control system of BMW,include engine/chassis/body and other parts.The operation is the same as the original scan tool.

BMW F Chassis 2011 Bleeding ABS Brake Operation Guide (1)

Then Select “Manually Select”

Select “5 series”

Select “5’-F10/F11/F18”

Select “Chassis”

Select “ABS(Anti-lock Braking System-DSC)”

Communicating,please wait….

The software show the ECU IDENTIFY

Please pay more attention to ECU IDENTIFY,select “Ok”

BMW F Chassis 2011 Bleeding ABS Brake Operation Guide (2)

Then select “Sepecial Function”

Select “Brake Bleeding Procedure”

Then software will pop-up a prompt,the content show as below,pay attention to the prompt,select “OK”

“The brake bleeding procedure must be carried out following work on the brake system.Residual air from the secondary circuit in the DSC unit is extracted.This improves the conventional ventilation process using the bleeder unit”

BMW F Chassis 2011 Bleeding ABS Brake Operation Guide (3)

Then follow guide on software operations

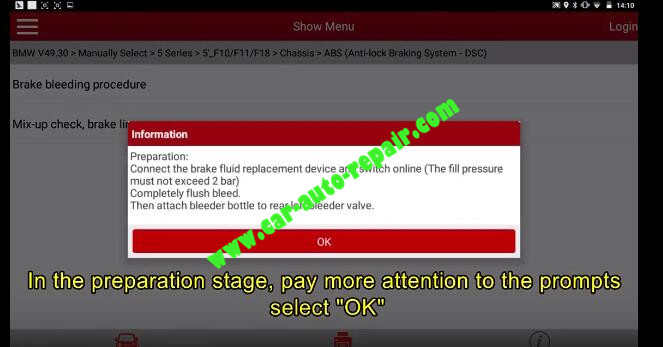

Preparation:

Connect the brake fluid replacement device and switch online(The fill pressure must not exceed 2 bar)

Completely fush bleed.

Then attach bleeder bottle to rear left bleeder valve.

In the preparation stage,pay more attention to the prompts,then select “OK”

Open bleeder valve at rear left wheel

The pre-bleeding routine for the rear-axle brake circuit is started in the next test step.

For this purpose,a person must sit in the vehicle and press the brake pedal at 3 second intervals.

This process takes approx. 15 seconds

BMW F Chassis 2011 Bleeding ABS Brake Operation Guide (5)

Pre-bleeding routine for the rear-axle brake circuit.

Press the brake pedal as far as it will go every 3 seconds.

This process takes approx. 15 seconds

BMW F Chassis 2011 Bleeding ABS Brake Operation Guide (6)

Communicating,please wait…

Pre-bleeding routine at rear-axile brake circuit completed successfuly.

Rear left bleeder screw remains open.

Press [OK] to continue service function

BMW F Chassis 2011 Bleeding ABS Brake Operation Guide (6)

The bleeding routine for the rear left wheel is started in the next test step.

During the routine,press the brake pedal as for as it will go every 3 seconds.

The routine bake approx. 30 seconds.

Wait for corresponding message.

Brake fluid free of bubles must emerge at the end of the routine.

BMW F Chassis 2011 Bleeding ABS Brake Operation Guide (6)

Select “OK”,the software show below prompts.

“Bleeding routine for the rear left wheel

Press the brake pedal as for as ti will go every 3 seconds.

This process takes approx. 30 seconds.”

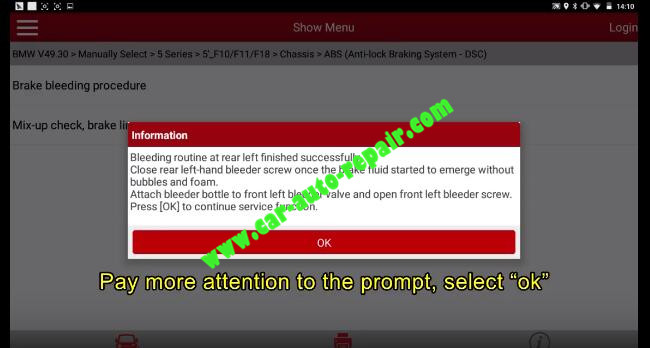

Bleeding routine at rear left finished successfully.

Close rear left-hand bleeder screw once the brake fluid started to emerge without bubbles and foam.

Attach bleeder bottle to front left bleeder valve and open front left bleeder screw.

Press [OK] to continue service function.

BMW F Chassis 2011 Bleeding ABS Brake Operation Guide (6)

The pre-bleeding routine for the front-axle brake circuit is started in the nex test step.

Select [OK]

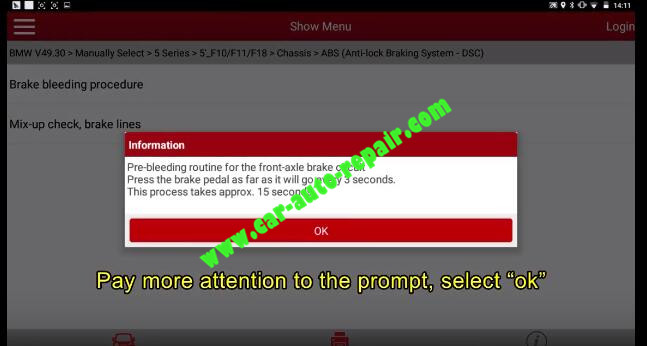

Pre-bleeding routine for the front-axle brake circuit

Press the brake pedal as far as it will go every 3 seconds.

This process take approx. 15 seconds.

Select [OK]

BMW F Chassis 2011 Bleeding ABS Brake Operation Guide (11)

Communicating ,please wait…

…..

Just follow the software to complete front left,front right,rear right ABS brake routine beelding…





Here is the BMW 5 series F chassis ABS bleeding video guide:
