Magneti Marelli 4CFR Ford and KIA ECM Pinout

Vehicles: Eco Esporte, Fiesta and Ka.



More ECU PINOUT Components:

ECU Modules Repair Pinpout & Components

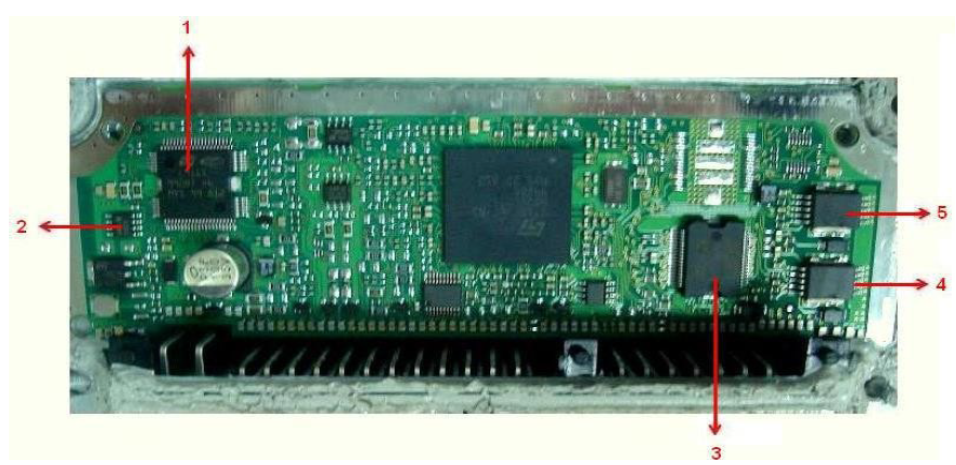

Main components

1 5 volt regulator, pump relay and thermostatic valve;

2 SOIC, code 95320;

3 Nozzles, Canister and Idle;

4 Coil 1;

5 Coil 2.



Technical specifications

Special features

Without distributor;

Immobilizer integrated into the panel;

Pin 01 to the right;

4X sinusoidal RPM signal;

Eprom on the processor;



Common defects

Does not activate the pump relay, which is probably a defect in the bomb.
