Volvo PTT Perform A Fuel Consumption Data Test

This article show a guide on how to use Volvo PTT to perform a fuel consumption data test.And for more Volvo PTT projects,check here:Volvo Premium Tech Tool Projects.



What You Need?

Volvo PTT Premium Tech Tool PTT 2.6.0.29 All Version Free Download

How to Install Volvo Premium Tech Tool PTT Software

Volvo Diagnostic Kit (88890300)



Procedures:

Login with user ID and password

After vehicle identify,enter a work order number,here enter “DataMax”,click “Start Work”

This example fuel consumption data in US10

Volvo PTT Perform A Fuel Consumption Data Test (1)

Select “Test” tag

Volvo PTT Perform A Fuel Consumption Data Test (2)

After preparation conditions checking,select “Engine,Engine mounting and equipment”–>”General”–>”2008-08-03-05 Fuel Consumption Data”,then click “Start” to proceed.

Volvo PTT Perform A Fuel Consumption Data Test (3)

Select “Volvo Engine with DataMax Enabled”

Volvo PTT Perform A Fuel Consumption Data Test (4)

Click “Play” button to start test.

The vehicle life and trip report display total (life of vehicle) and trip information that is lagged by DataMax over the life of the vehicle and since the last reset of the service trip.

Note:If the total value are not sensible,for example if the total fuel consumed has an unrealistic value when compared to the total mileage,it is possible that the total values may have been test or incorrectly transferred when the vehicle ECU was replaced or reprogrammed at some point during the lifetime of the vehicle.There is no way to correct this situation.In this case,the trip information must be used.

Volvo PTT Perform A Fuel Consumption Data Test (5)

To view product history exit the test

Volvo PTT Perform A Fuel Consumption Data Test (6)

To print product history operation detail,click “Product History”

Volvo PTT Perform A Fuel Consumption Data Test (7)

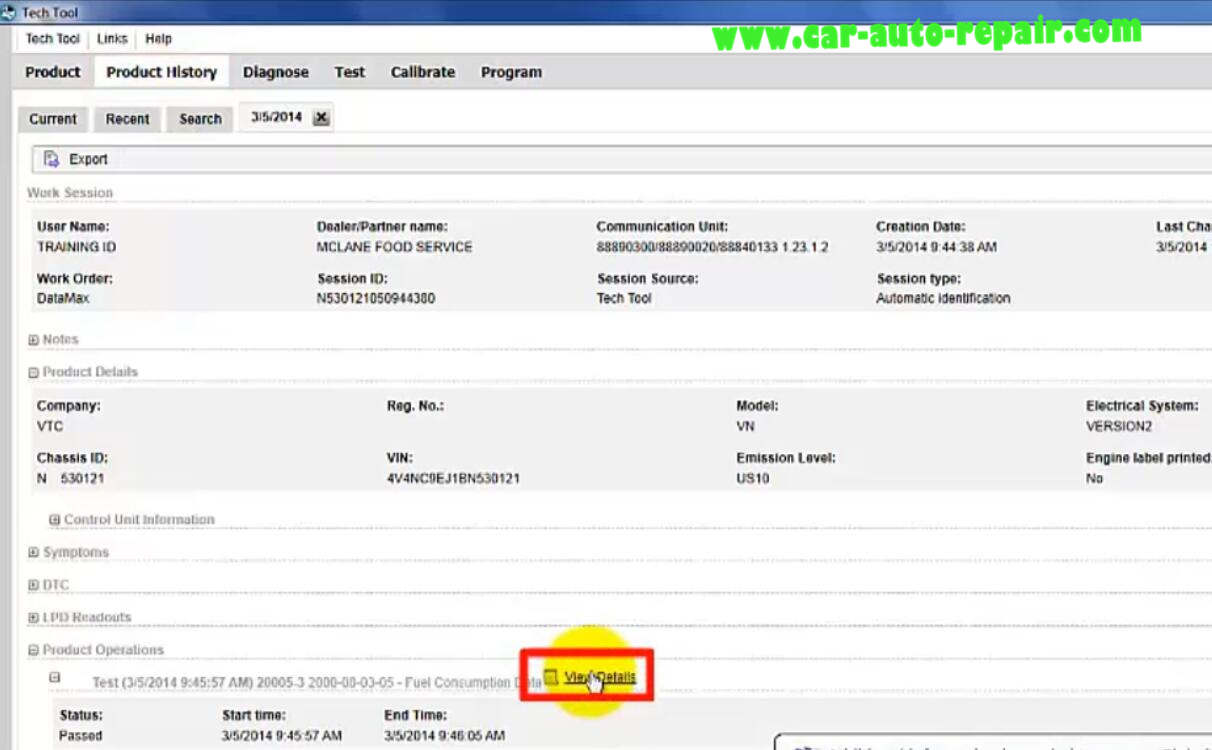

Click view detail

Volvo PTT Perform A Fuel Consumption Data Test (8)

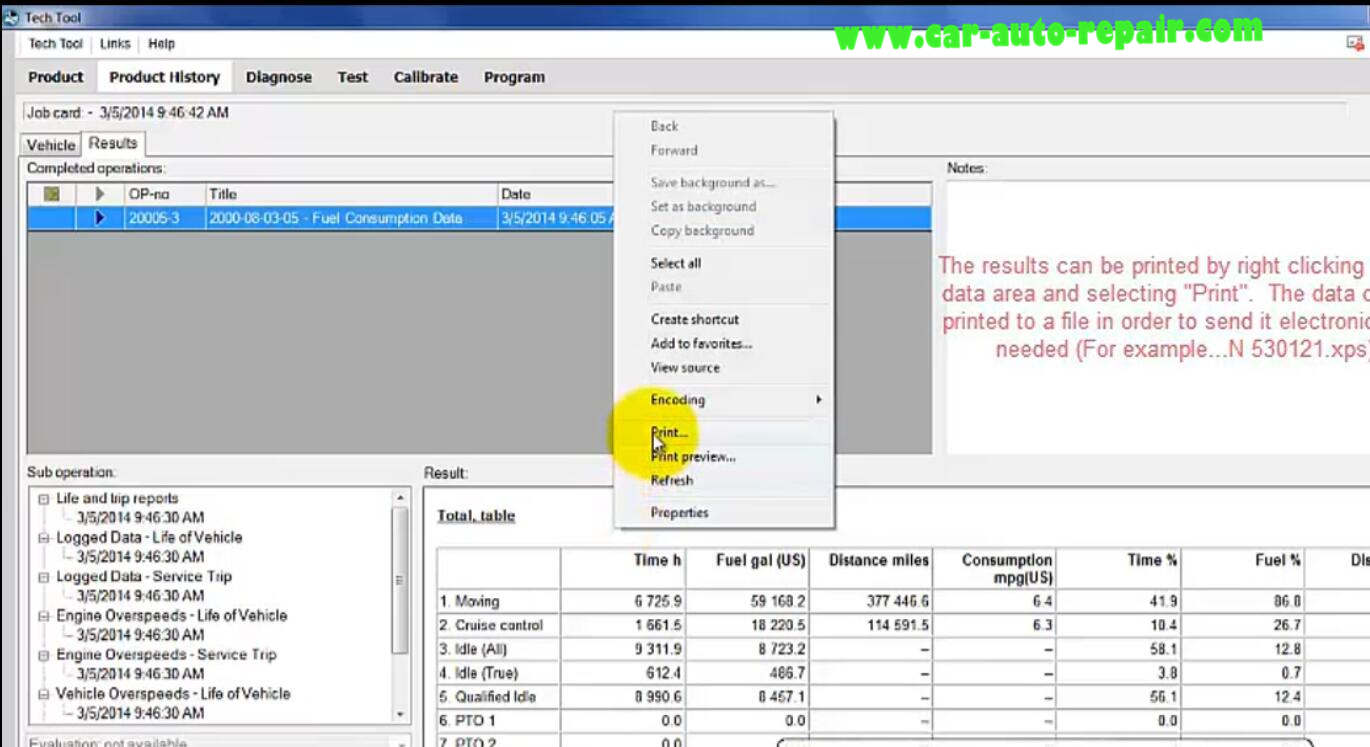

Then click print and save the file on desktop.

Volvo PTT Perform A Fuel Consumption Data Test (9) Volvo PTT Perform A Fuel Consumption Data Test (10)



Done!
