Tesla Model X Airbag Crash Data Reset by Launch X431

There is a step-by-step guide on how to reset airbag crash data for Tesla model X by Launch X431 device.And more repair guide for Tesla,please refer to Tesla Trouble Repair.



Note:Launch X431 function is used to reset airbag crash data in order to recycle airbag ECU (Electric Control Unit). (In some countries, erasing airbag crash data without changing airbag assembly is not legal. So, we highly recommend to replacing car’s entire airbag assembly)..



Preparations:

Launch X431 V Pro or Launch X431 PAD V (Amazon Official Shop)



Procedures:

Remove airbag ECU from vehicle

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-1 Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-2



Airbag ECU wiring diagram

Wiring and pin allocation

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-3

+12V: 12V power supply

GND: Ground wire

CAN_H: CAN high

CAN_L: CAN low

Tesla airbag repair designated connector wiring diagram

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-4

Go into Tesla software, select “Model 3”-> “Special Function”-> “Service AIRBAG”,as shown in figure 1, or select “Model 3”-> “System Selection”–> “SDM Airbag”-> “Special Function”, as shown in figure 2.

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-5 Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-6



Unlock airbag ECU, click”Unlock EEPROM After Crash”. It will finish automatically.

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-7

Read airbag ECU memory, select “Read EEProm”menu, when reading is done, input backup file name, select backup file storage directory, data backup is done.

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-8

Input backup file name, for example “Model_X_20210520”

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-9

Click “OK”to backup data;

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-10

Read EEPROM and backup finished;

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-11

Erase crash data, go into [Erase Crash -Direct]menu, select [Read EEProm] backup file. The software will automatically perform [Write EEProm] to write backup data and verify if data written is correct.

Select backup file

Click “Model_X_20210520.bin” to select back file

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-12

Edit backup data. Press“YES”to use default data. Press “Auto Set”to automatically modify value (recommended). Press “Memory Dump”to manually modify backup data.

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-13

If you press [Auto Set], it will skip this procedure. Press [Memory Dump], you can manually modify backup data. Start address is where the system starts to read backup data and it can be modified manually. After entering start address, press [Confirm] to write modified data, click [Restore] to recover it to old value.

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-14

Write data, erase airbag crash data.

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-15

Verify written data

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-16

Write crash data, go into”Write EEProm”menu, select backup file. The software will automatically write backup data and verify if data is correct. This procedure is similar to above mentioned procedure “Erase Crash -Direct”.

Select backup file

Click “Model_3_20210520.bin” to select back file

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-17

Edit backup data. Press“YES”to use default data. Press [Auto Set] to automatically modify value (recommended). Press “Memory Dump”to manually modify backup data.

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-18

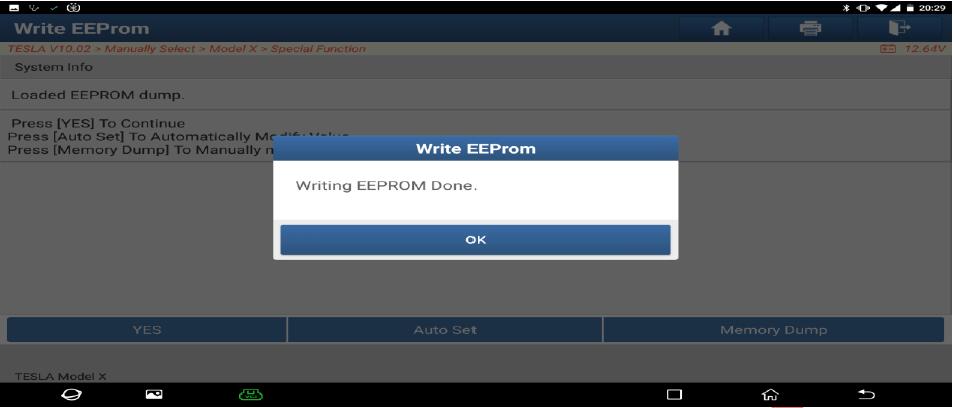

Write Data

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-19 Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-20

Verify written backup data

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-21

Erase crash record, go into”Erase Crash Record”menu, the software will automatically finish it.

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-22

Clear DTC (Diagnostic Trouble Code), put airbag ECU back. Erasing crash data is done.

Tesla-Model-X-Airbag-Crash-Data-Reset-by-Launch-X431-23

If you find the above procedure is cumbersome , please click “Crash Data Resetting Automatically”menu, it will automatically perform all procedures.
