Perkins 1000 Series Engine Fuel Injection Pumps Self Vent Feature

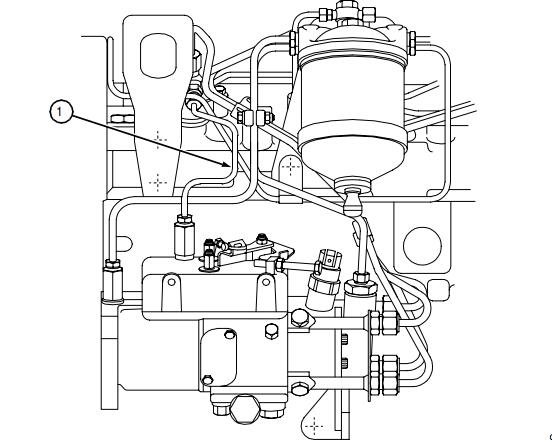

New CAV DPA and DPS fuel injection pumps which will automatically eliminate air from the pump have been introduced on some engines. These pumps have a vent pipe (A1) fitted between the top of the pump and the atomiser leak-off pipe. Vent screws are not fitted to these pumps and connections or plugs need not be released to eliminate air from the pump.

Related Contents:

Newest Perkins EST 2022A & 2019A Full Support Free Download

Perkins SPI2 2018A EPC+Service Manual Free Download



To eliminate air from the fuel system
If the system or a component in the system has been drained:
1 Turn the start key to the ‘R’ position. If a manual stop control is fitted, ensure that it is in the’run’ position.
2 Operate the lever of the fuel lift pump slowly for approximately two minutes.
3 Operate the starter motor until the engine starts.

Perkins-1000-Series-Engine-Fuel-Injection-Pumps-Self-Vent-Feature



If the engine has been stopped by air in the fuel system:
1 Ensure that there is sufficient fuel in the tank, or that the fuel or air leaks have been corrected.
2 If a manual stop control is fitted, ensure that it is in the run position.
3 Operate the starter motor until the engine starts.
