How to Disassembly Pump for Kubota U48-4 Excavator

This instruction show you guide on how to disassemble pump for Kubota U48-4 excavator.

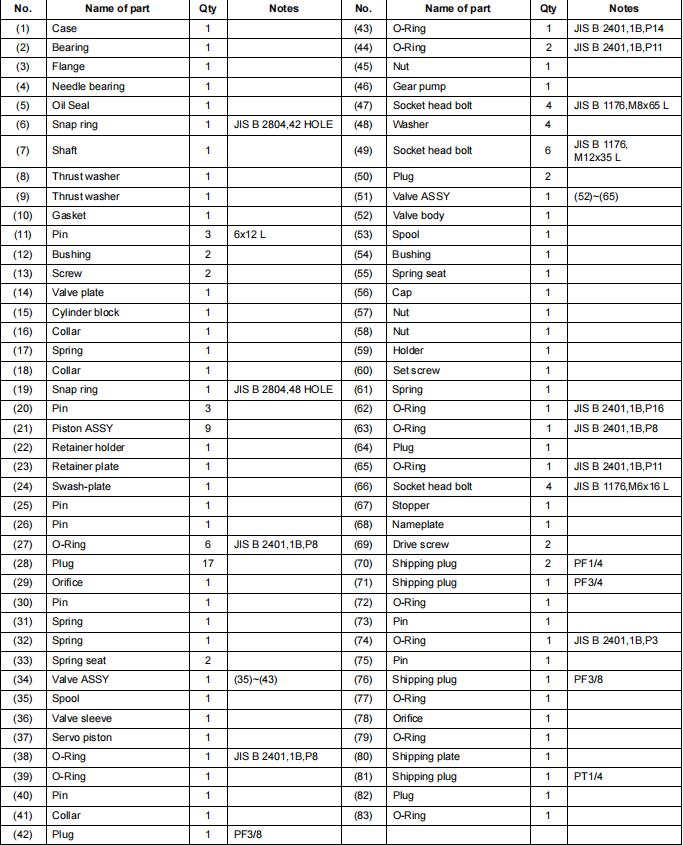

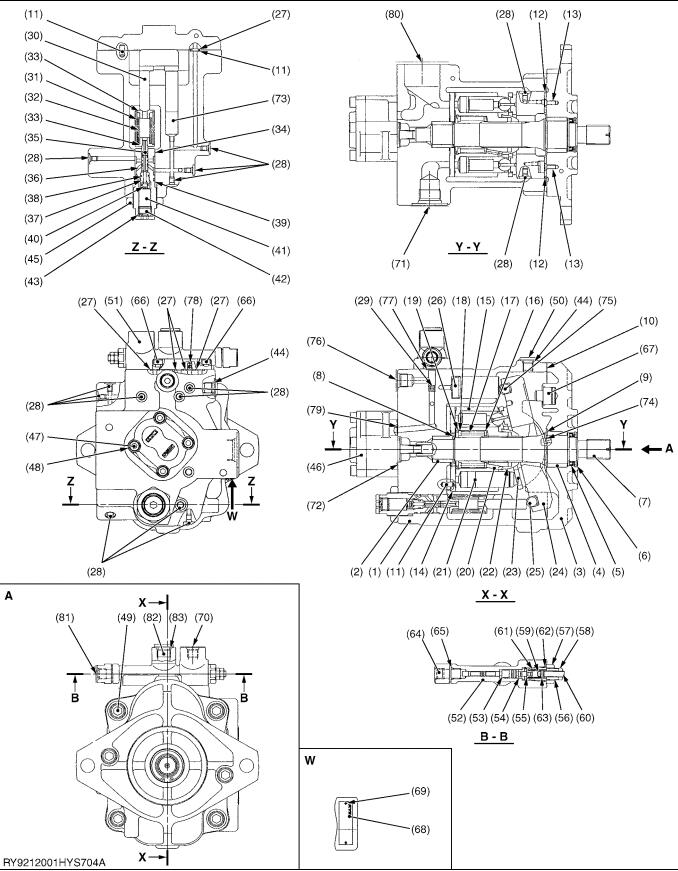

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-1 How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-2



Related Contents:

Takeuchi Excavator Workshop EPC+Service Manual 2018 PDF Files

2022 Kubota Takeuchi Diagmaster v20.11.01 v4.1.2 Software Free Download

Kubota EPC Spare Parts Catalogue 2021.06 Download



Procedures:

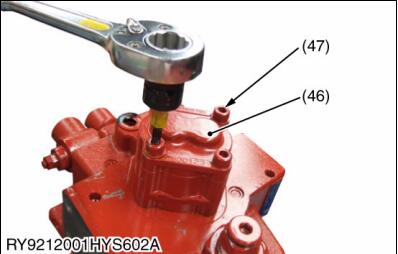

1.Remove the gear pump (46).

  • Tool to use: M8 hex socket

Gear Pump (47) Socket head bolt

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-3

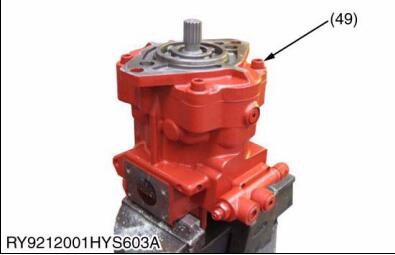

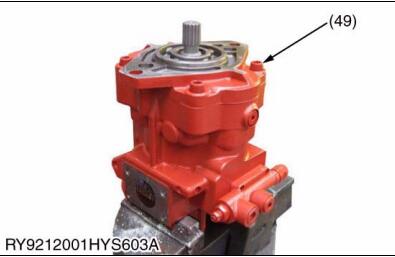

2.Lift the input axle up and clamp the pump in a vise.

IMPORTANT

  • Take care not to scratch the suction or discharge ports in the vise.

(49) Socket head bolt

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-4

3.Loosen the bolt and remove flange (3).

CAUTION

  • If the flange is difficult to remove, tap lightly on it with a plastic hammer and take it apart.
  • Don’t pinch your fingers between the flange and the case.
  • Tool to use: M10 hex socket

(3) Flange

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-5

4.Remove the screw (13) and the bushing (12).

  • Tool to use: M3 hex socket

(12) Bushing

(13) Screw

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-6

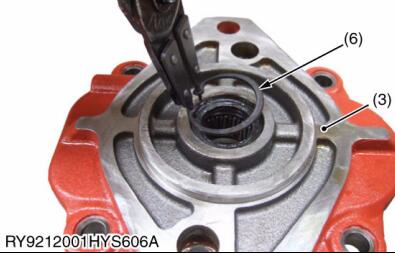

5.Remove the snap ring (6) from the flange (3).

CAUTION

  • Take care so the snap ring does not go flying.
  • Tool to use: Snap ring pliers

(3) Flange

(6) Snap ring

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-7

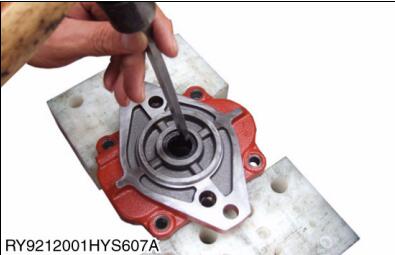

6.Remove the oil seal and the needle bearing from the flange.

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-8

7.Remove the gasket (10).

CAUTION

  • Be careful not to cut your fingers on the gasket.

(10) Gasket

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-9

8.Remove the thrust washer (9) from the shaft (7).

(7) Shaft

(9) Thrust washer

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-10

9.Remove the swash-plate (24).

(24) Swash-plate

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-11

10.Remove the shaft (7).

(7) Shaft

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-12

11.Remove the cylinder block ASSY .

  • Cylinder Block ASSY Components

Cylinder block, collar, spring, collar, snap ring, pin, piston ASSY, retainer holder, retainer plate

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-13

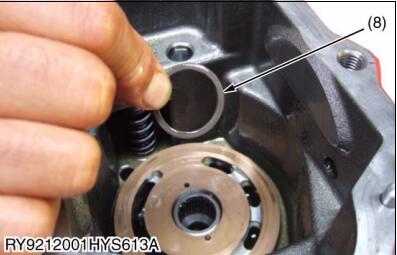

12.Remove the thrust washer (8).

(8) Thrust washer

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-14

13.Remove the valve plate (14).

(14) Valve plate

IMPORTANT

  • Do not scratch the valve plate.

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-15

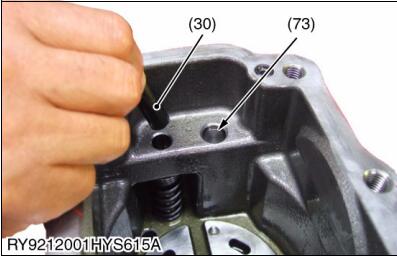

14.Remove the pins (30) & (73).

(30) Pin

(73) Pin

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-16

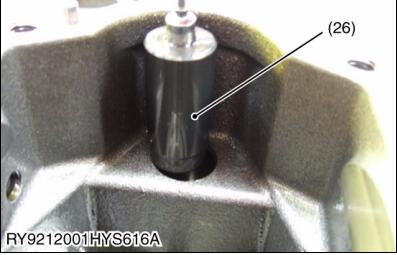

15.Remove the pin(26).

(26) Pin

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-17

16.Remove the nut (45).

IMPORTANT

  • Measure the width of L before removing the nut.
  • Tool to use: Monkey wrench

(45) Nut

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-18

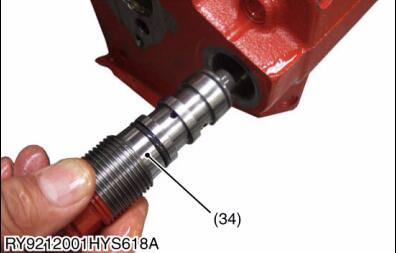

17.Remove the valve ASSY (34).

(34) Valve ASSY

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-19

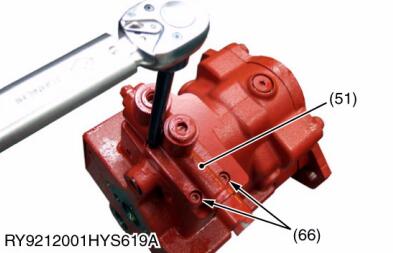

18.Remove the valve ASSY (51).

  • Tool to use: M5 hex socket

(51) Valve ASSY

(66) Socket head bolt

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-20

19.Remove O-rings (27) & (77).

(27) O-Ring

(77) O-Ring

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-21

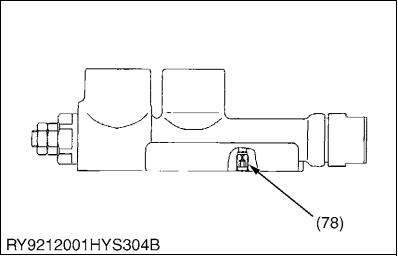

20.Remove the orifice (78) of the valve ASSY.

  • Tool to use: M3 hex socket

(78) Orifice

How-to-Disassembly-Pump-for-Kubota-U48-4-Excavator-22
