Configure BMW Rheingold ISTA With BMW ENET Cable

Here comes the guide on how to configure BMW Rheingold ISTA with BMW ENET cable.It is highly recommend for the individual DIYer,because the ENET cable is only cost you less than $20.And hope this guide is helpful to you.



And I wrote other two post about ISTA with BMW ICOM and K+DCAN:

BMW ICOM Configuration and Verification With BMW ISTA+

K+DCAN Configuration and Verification With BMW ISTA+





Build BMW ENET Cable:

How to build a BMW Ethernet to OBD2 ENET Cable Step by Step



BMW ISTA Download & Installation & Usermanual

How To Install BMW Rheingold ISTA Software

BMW Rheingold ISTA 4.07.22/4.03.21 Free download Win7/Win8/Win10

BMW Rheigold ISTA Usermanual Download



Procedures of configuring ISTA with BMW ENET cable:

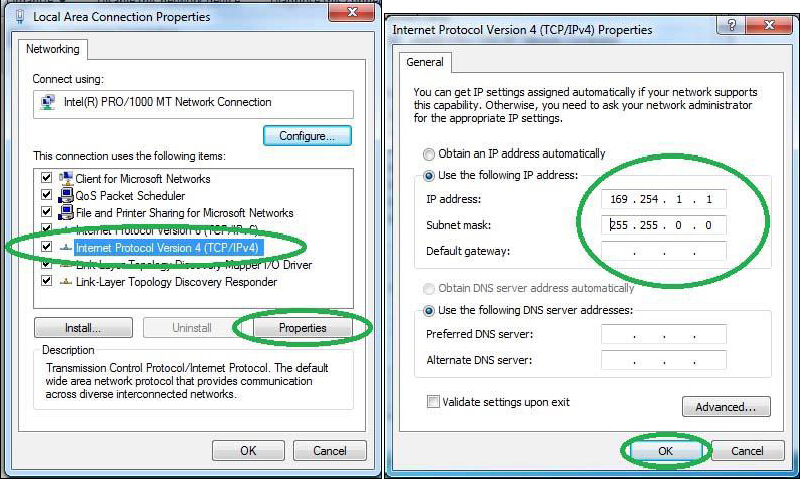

1.Open used for connection network adapter properties, then “Internet Protocol Version 4 (TCP/IPv4)”properties, then enter 169.254.1.1 for “IP address”and 255.255.0.0 for “Subnet mask”.

Configure BMW Rheingold ISTA With BMW ENET Cable (1)

2.If VMware is installed, open Virtual Network Editor and disconnect from the host any adapters with Subnet Address 169.254.0.0.

Configure BMW Rheingold ISTA With BMW ENET Cable (2)

3.Connect car with ENET cable to PC, turn ignition on.

4.Now run BMW Rheingold ISTA using shortcut in start menu and wait until it boots, then press settings button.

Configure BMW Rheingold ISTA With BMW ENET Cable (3)

5.Select “VCI Config” tab and “HO-ICOM/ENET local and ISIS network”, then “OK”.

Configure BMW Rheingold ISTA With BMW ENET Cable (4)

6.Go “Operations”, then “Read Out Vehicle Data” and “Complete Identification”.

Configure BMW Rheingold ISTA With BMW ENET Cable (5) Configure BMW Rheingold ISTA With BMW ENET Cable (6)

7.Select your ENET connection from the list and press “Set up connection” button.

Configure BMW Rheingold ISTA With BMW ENET Cable (7) Configure BMW Rheingold ISTA With BMW ENET Cable (8)

8.Alternatively you could select “HO-ICOM/ENET direct connection” in “VCI Config” tab and “ENET” mode with empty “IP-Address” field during connection setup.

Configure BMW Rheingold ISTA With BMW ENET Cable (8) Configure BMW Rheingold ISTA With BMW ENET Cable (10)

Done!
