Benz E300 W212 Xenon Headlamp Calibration C156E00 by Launch X431

This instruction show you guide on how to use Launch X431 to calibrate Xenon headlamp for Benz E300 W212 C156E00 DTC:Calibration of the vehicle level was not performed.

Benz-E300-W212-Xenon-Headlamp-Calibration-C156E00-by-Launch-X431-1



Preparations:

Launch X431 V Pro or Launch X431 PAD V (Amazon Official Shop)



Procedures:

Connect Launch X431 V PAD to Benz W212

Benz-E300-W212-Xenon-Headlamp-Calibration-C156E00-by-Launch-X431-2

Run software and select “Local Diagnose”

Benz-E300-W212-Xenon-Headlamp-Calibration-C156E00-by-Launch-X431-3

Select “Automatically Search”

Benz-E300-W212-Xenon-Headlamp-Calibration-C156E00-by-Launch-X431-4

Check vehicle information and click “YES”

Benz-E300-W212-Xenon-Headlamp-Calibration-C156E00-by-Launch-X431-5 Benz-E300-W212-Xenon-Headlamp-Calibration-C156E00-by-Launch-X431-6

Switch On Ignition

Benz-E300-W212-Xenon-Headlamp-Calibration-C156E00-by-Launch-X431-7

DTC detail description

Benz-E300-W212-Xenon-Headlamp-Calibration-C156E00-by-Launch-X431-8

Select “Special Function”

Benz-E300-W212-Xenon-Headlamp-Calibration-C156E00-by-Launch-X431-9

Select “Calibration processes”

Benz-E300-W212-Xenon-Headlamp-Calibration-C156E00-by-Launch-X431-10

Check your vehicle information and click “YES”

Benz-E300-W212-Xenon-Headlamp-Calibration-C156E00-by-Launch-X431-11

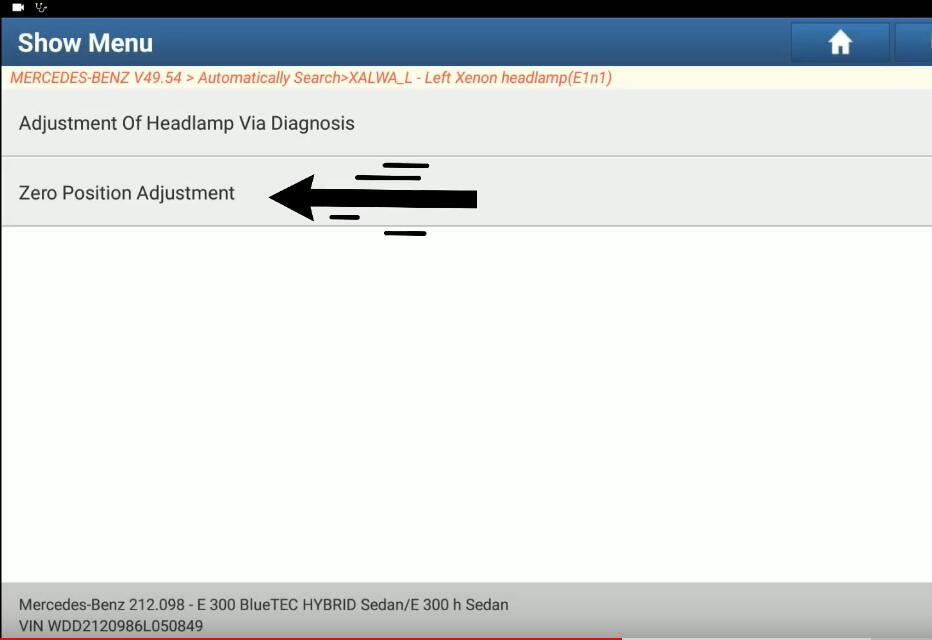

Select “Zero Position Adjustment”

Benz-E300-W212-Xenon-Headlamp-Calibration-C156E00-by-Launch-X431-12



Requirements:

The vehicle must be at a standstill.

The vehicle must be unladen.

The vehicle must be on a level surface.

The actual values of the level sensors must be in the valid range.

Benz-E300-W212-Xenon-Headlamp-Calibration-C156E00-by-Launch-X431-13

Press “F3”,Start zero position adjustment

Benz-E300-W212-Xenon-Headlamp-Calibration-C156E00-by-Launch-X431-14

After then back menu and select “Clear Fault Code”

Benz-E300-W212-Xenon-Headlamp-Calibration-C156E00-by-Launch-X431-15

Now error message disappear
